10HP LINCOLN 1750RPM 215TC TEFC 3PH MOTOR LM22836

Catalog Number:  LM22836
Description:  10HP,1750RPM,215TC,TEFC,3PH,60HZ
Ship Weight:  150 lbs.



Subject to availability, call for lead times.

TEFC C-FACE Models: For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Features Include:

  • Made in the U.S.A.
  • Variable torque speed range with open loop drive of 0-60Hz.
  • Constant horsepower speed range of 2x base speed (56-256T frames) or 1.5x base speed (284T-449T frames)
  • Wider speed ranges possile on intermittent duty.
  • Ultimate Spike Defense Insulation System
  • 1.00 service factor on PWM waveform, 1.15 service factor or better on sine-wave power.
  • Precision dynamic balanced rotor assembly
  • Thermal overload protection (Class F Thermostats)
Volts 230 Volts 460 Volts
F.L. Amps 25.4 F.L. Amps 12.7 F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 1800 Hertz 60
HP 10 Duty CONTINUOUS TYPE TFL
KW 7.5
Frame 215TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75%   PF 81.5
UL V-INS, CONST, OVERHEAT PRT DEV UL REC CSA Yes Bearing OPE 206
CC Number EXEMPT CE Yes Bearing PE 208
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 150 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

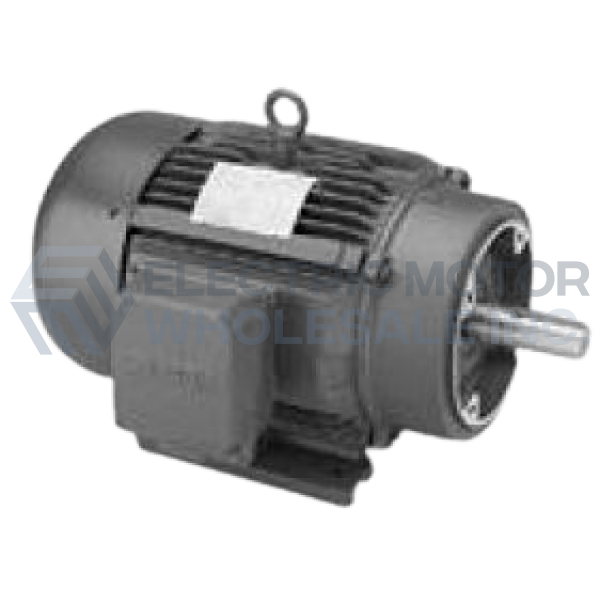

10HP LINCOLN 1750RPM 215TC TEFC 3PH MOTOR LM22836
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: LM22836
Stock # LM22836
Price: $848.00
