5HP LINCOLN 1750RPM 184TC TEFC 3PH MOTOR LM22830

LINCOLN Catalog Number:  LM22830
Description:  5HP,1750RPM,184TC,TEFC,3PH,60HZ
Ship Weight:  131 lbs.

TEFC C-FACE Models: For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Features Include:

  • Made in the U.S.A.
  • Variable torque speed range with open loop drive of 0-60Hz.
  • Constant horsepower speed range of 2x base speed (56-256T frames) or 1.5x base speed (284T-449T frames)
  • Wider speed ranges possile on intermittent duty.
  • Ultimate Spike Defense Insulation System
  • 1.00 service factor on PWM waveform, 1.15 service factor or better on sine-wave power.
  • Precision dynamic balanced rotor assembly
  • Thermal overload protection (Class F Thermostats)
Volts 230 Volts 460 Volts
F.L. Amps 13.4 F.L. Amps 6.7 F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 1800 Hertz 60
HP 5 Duty CONTINUOUS TYPE TFL
KW 3.73
Frame 184TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 79
UL V-OVER TEMP PROT 3, P1-P2 CSA Yes Bearing OPE 205
CC Number EXEMPT CE Yes Bearing PE 207
Load Type   Inverter Type NONE Speed Range NONE

Motor Wt. 131 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

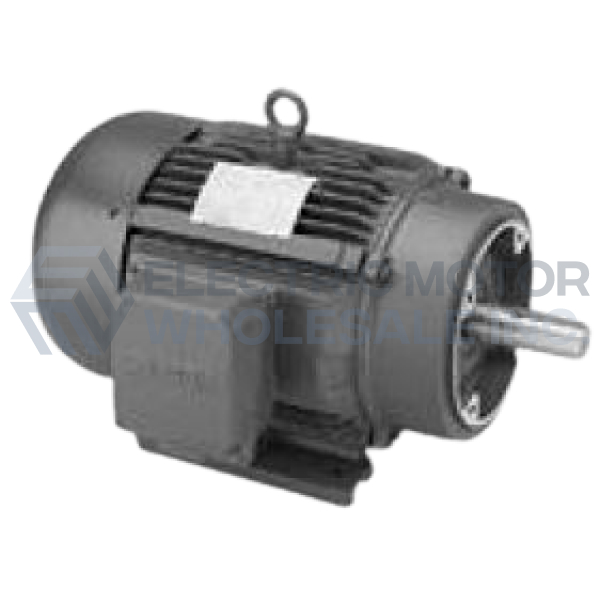

5HP LINCOLN 1750RPM 184TC TEFC 3PH MOTOR LM22830
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: LM22830
Stock # LM22830
Price: $585.00
Compare At: $1,477.00
