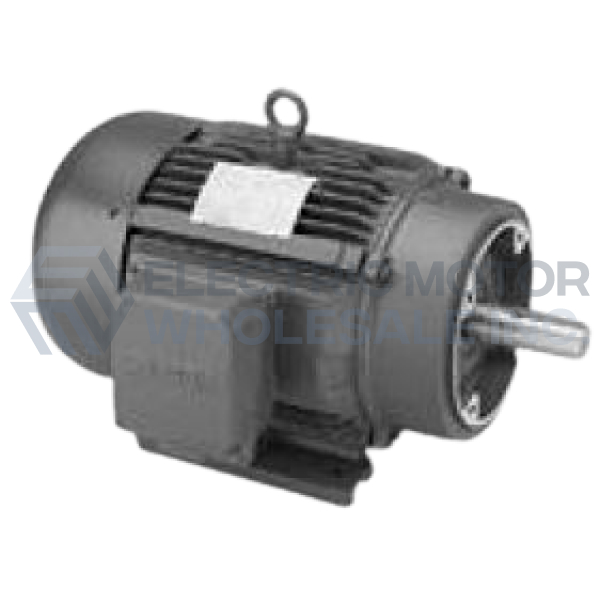

2HP LINCOLN 1170RPM 184TC TEFC 3PH Inverter Duty Motor LM22825

2HP LINCOLN 1170RPM 184TC TEFC 3PH Inverter Duty Motor LM22825

Picture is for reference only.

Part Number:

LM22825

Model/Spec Number:

AAF6P2TC61Q40

Manufacturer:

Lincoln
LM22825 LINCOLN 2HP Three Phase Inverter Duty Electric Motor is for use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Item Discontinued

Click below to request an agent review potential options.

Weight:

104 lbs

Dimensions:

13 x 26 x 13 inches

Technical Details

Brand:

Lincoln

Application:

Inverter Duty

Output HP:

2

Output KW:

1.5

Output RPM:

1170

Frame Size NEMA:

184TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Voltage:

230/460

Frequency (Hz):

60
