15HP LINCOLN 1170RPM 324U TEFC 3PH MOTOR LM21387

LINCOLN Catalog Number:  LM21387
Description:  15HP,1170RPM,324U,TEFC,3PH,60HZ
Ship Weight:  750 lbs.



Subject to availability, call for lead times.

LINCOLN Three Phase TE U-FRAME Automotive Duty MotorsFor use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors

Speed ranges (continuous duty) on variable-frequency electronic
speed controls (inverters):

P efficiency codes: Constant torque, 6 to 60 Hz
Variable torque, 3 to 60 Hz

G efficiency codes: Constant torque, 15 to 60 Hz
Variable torque, 6 to 60 Hz

Features Include:

  • Made In U.S.A.
  • Meets NEMA U-Frame dimensional and performance standards.
  • Exceeds General Motors GM-7EH and -7EQ, FordEM1, and Chrysler NPEM-100 specifications. Exceed NEMA MG-1, Section IV, Part 31 spike resistance requirements.
  • NEMA Design B Performance.
  • Nameplated 1.15 service factor, 40°C ambient and 1.00 service factor, 65°C ambient.
  • Inverter-Rated
  • Premium Class F Insulation System.
  • Lower noise designs improve plant sound quality.
  • UL Recognized Component Listing and CSA Approval.
  • Warranty – (sine-wave power) 42 months from date of manufacture
    and 36 months from date of installation which ever period expires first.
    (inverter power) 30 months from date of manufacture and 24 months from date of installation which ever period expires first.
Volts 460 Volts   Volts
F.L. Amps 19.2 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 1200 Hertz 60
HP 15 Duty CONTINUOUS TYPE TFS
KW 11.2
Frame 324U Serv. Factor 1.0 Phase 3
Max Amb 65 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.4 Eff 75%   PF 78.5
UL V-INS, CONST UL REC CSA Yes Bearing OPE 6311
CC Number CC004A CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 750 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92117-AZ-GL-BCDLM-P-A-X Mounting RIGID Rotation REV

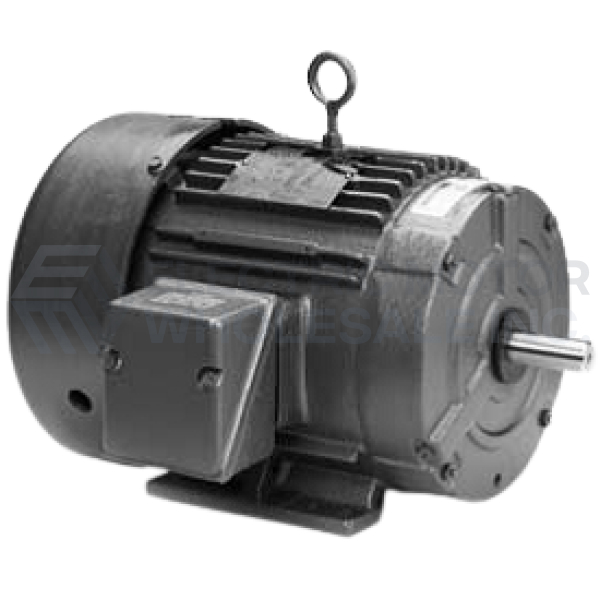

15HP LINCOLN 1170RPM 324U TEFC 3PH MOTOR LM21387
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: LM21387
Stock # LM21387
