25HP LINCOLN 1750RPM 324U TEFC 460V 3PH Automotive U-Frame Motor LM21386

25HP LINCOLN 1750RPM 324U TEFC 460V 3PH Automotive U-Frame Motor LM21386

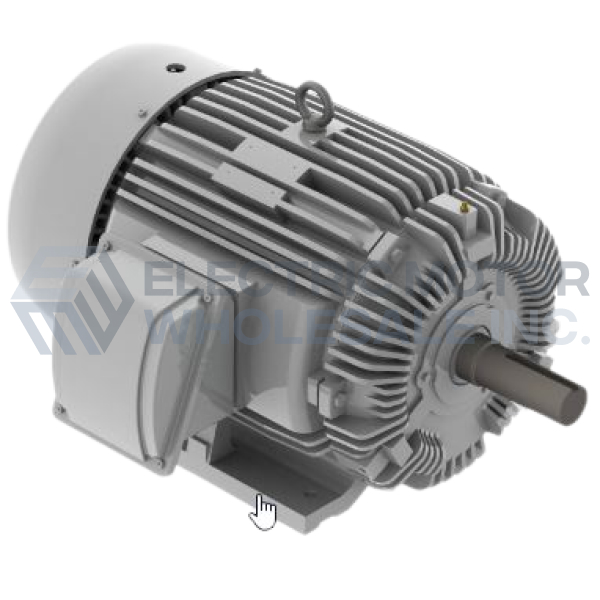

Picture is for reference only.

Part Number:

LM21386

Model/Spec Number:

CCF4P25U64

Manufacturer:

Lincoln
LM21386 LINCOLN 25HP Electric Motors for use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors.

Item Discontinued

Click below to request an agent review potential options.

Weight:

748 lbs

Dimensions:

24 x 36 x 24 inches

UPC:

691720105535

Technical Details

Brand:

Lincoln

Application:

Automotive Duty

Output HP:

25

Output KW:

18.5

Output RPM:

1750

Frame Size NEMA:

324U

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

460

Product Information Packet
