200HP LINCOLN 1788RPM 445T TEFC 460V 3PH Inverter Duty Motor LM21236

200HP LINCOLN 1788RPM 445T TEFC 460V 3PH Inverter Duty Motor LM21236

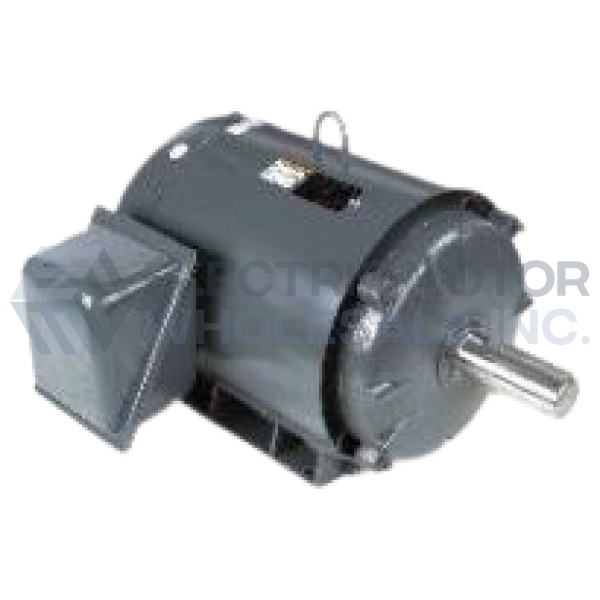

Picture is for reference only.

Part Number:

LM21236

Model/Spec Number:

SF4P200T64YQ40

Manufacturer:

Lincoln
LM21236 LINCOLN 200HP Electric Motor for use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Item Discontinued

Click below to request an agent review potential options.

Weight:

1,504 lbs

Dimensions:

24 x 36 x 24 inches

HS Code:

8501.53.4000

Technical Details

Brand:

Lincoln

Output HP:

200

Output KW:

100-149

Output RPM:

1300-1800 (4P)

Frame Size NEMA:

444-5T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

460

Frequency (Hz):

60

Motor Drawing

Connection Diagram
