150HP LINCOLN 3450RPM 445TS TEFC 460V 3PH Inverter Duty Motor LM21232

150HP LINCOLN 3450RPM 445TS TEFC 460V 3PH Inverter Duty Motor LM21232

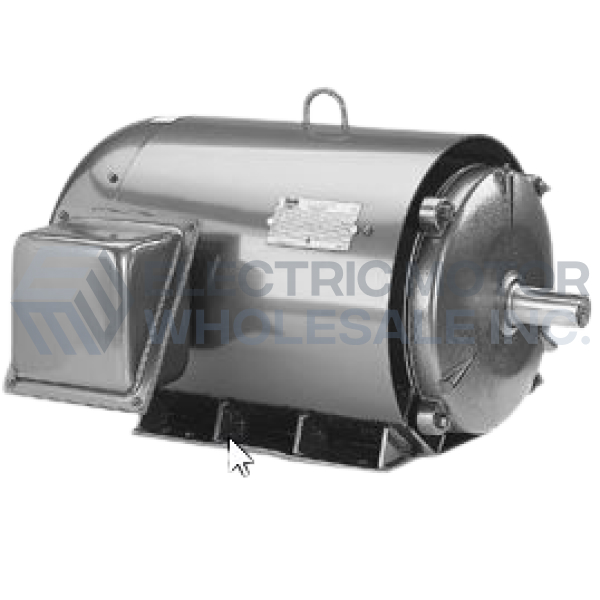

Picture is for reference only.

Part Number:

LM21232

Model/Spec Number:

SF2P150TS64YQ40

Manufacturer:

Lincoln
LM21232 LINCOLN 150HP Three Phase Inverter Duty Electric Motor is for use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Item Discontinued

Click below to request an agent review potential options.

Weight:

1,504 lbs

Dimensions:

24 x 36 x 24 inches

Technical Details

Brand:

Lincoln

Application:

Inverter Duty

Output HP:

150

Output KW:

112

Output RPM:

3450

Frame Size NEMA:

445TS

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Voltage:

460

Frequency (Hz):

60
