50HP LINCOLN 1170RPM 365T TEFC 3PH Inverter Duty Motor LM21221

50HP LINCOLN 1170RPM 365T TEFC 3PH Inverter Duty Motor LM21221

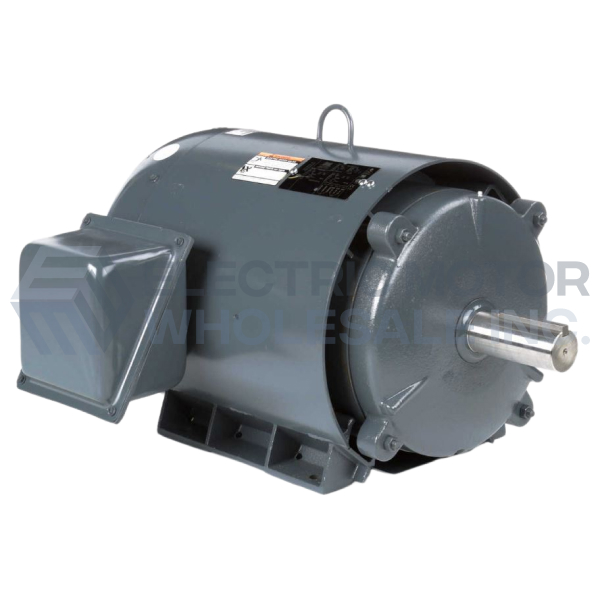

Picture is for reference only.

Part Number:

LM21221

Model/Spec Number:

SF6P50T61YQ40

Manufacturer:

Lincoln
LM21221 LINCOLN 50HP Three Phase Inverter Duty Electric Motor is for use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Item Discontinued

Click below to request an agent review potential options.

Weight:

822 lbs

Dimensions:

24 x 36 x 24 inches

Technical Details

Brand:

Lincoln

Application:

Inverter Duty

Output HP:

50

Output KW:

37.0

Output RPM:

1170

Frame Size NEMA:

365T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram
