20HP LINCOLN 1750RPM 256T TEFC 230/460V 3PH MOTOR LM21205

Catalog Number: LM21205
Model Number: AF4P20T61Q40
Description:  20HP,1750RPM,256T,TEFC,230/460V,3PH,60HZ
Ship Weight:  341 lbs.

This LINCOLN Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

APPLICATIONS: For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

FEATURES:

  • Made in U.S.A.
  • Aluminum frame design
  • Inverter duty insulation system
  • Service factor 1.0
  • Constant HP range at 2x base speed 56 - 256T frames
  • Constant HP range at 1.5x base speed 284T - 445T frames
  • No mounting available for encoder devices
  • Normally enclosed thermostats
  • Precision balanced rotors
  • Footnotes: A, US
Volts 230 Volts 460 Volts
F.L. Amps 50 F.L. Amps 25 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 20 Duty CONTINUOUS TYPE TFL
KW 14.92
Frame 256T Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 82
UL NONE-OVER TEMP PROT 3, P1-P2 CSA Yes Bearing OPE 208
CC Number EXEMPT CE Yes Bearing PE 309
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 341 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

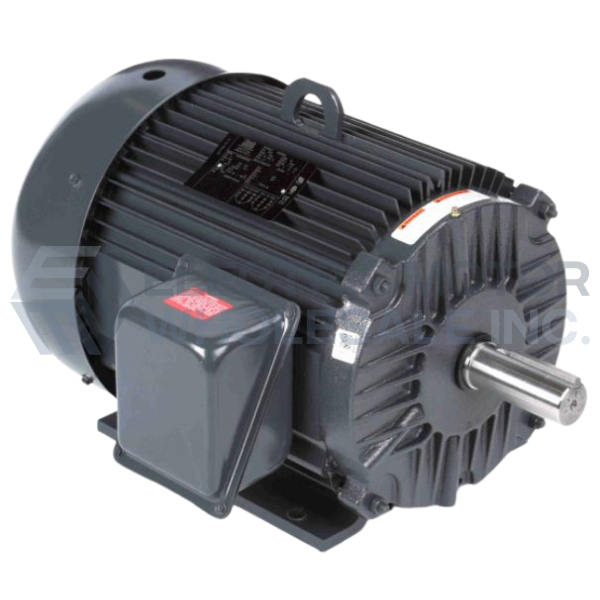

20HP LINCOLN 1750RPM 256T TEFC 230/460V 3PH MOTOR LM21205
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: LM21205
Stock # LM21205
Price: $1,183.00
Compare At: $2,756.00
Quantity:
