7.5HP LINCOLN 1760RPM 213T TEFC 3PH Inverter Duty Motor LM21196

7.5HP LINCOLN 1760RPM 213T TEFC 3PH Inverter Duty Motor LM21196

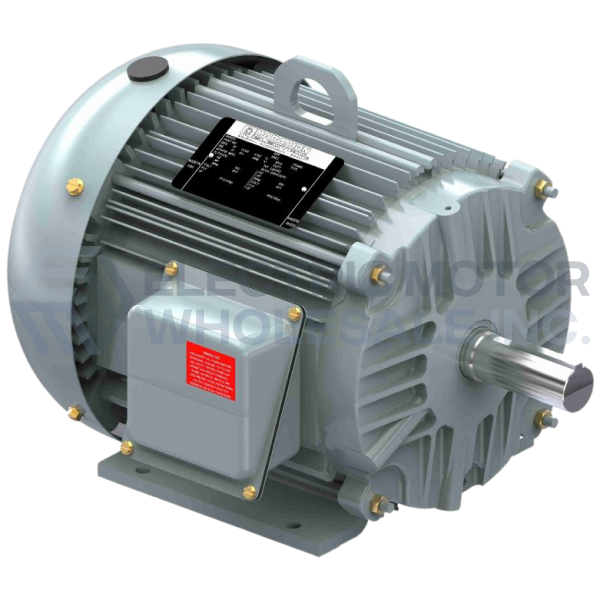

Picture is for reference only.

Part Number:

LM21196

Model/Spec Number:

AF4P7.5T61Q40

Manufacturer:

Lincoln
LM21196 LINCOLN 7.5HP Electric Motor for use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

158 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Lincoln

Output HP:

7.5

Output KW:

5.5

Output RPM:

1300-1800 (4P)

Frame Size NEMA:

213-5T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram
