3HP LINCOLN 1170RPM 213T TEFC 3PH Inverter Duty Motor LM21194

3HP LINCOLN 1170RPM 213T TEFC 3PH Inverter Duty Motor LM21194

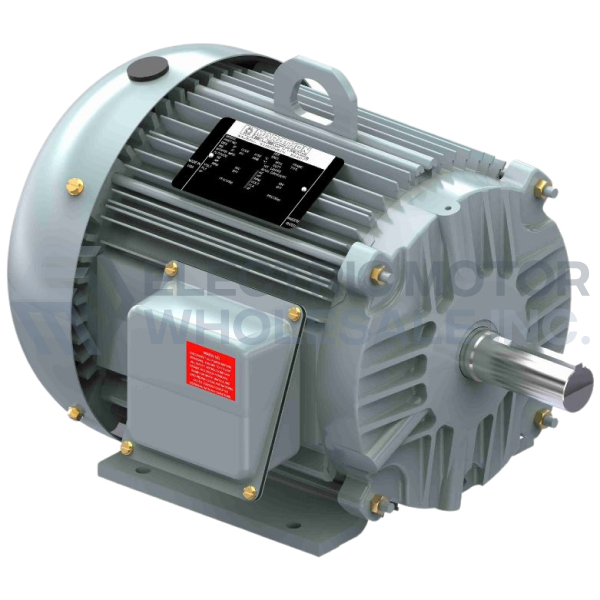

Picture is for reference only.

Part Number:

LM21194

Model/Spec Number:

AF6P3T61Q40

Manufacturer:

Lincoln
LM21194 LINCOLN 3HP Three Phase Inverter Duty Electric Motor is for use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Item Discontinued

Click below to request an agent review potential options.

Weight:

127 lbs

Dimensions:

13 x 26 x 13 inches

Technical Details

Brand:

Lincoln

Application:

Inverter Duty

Output HP:

3

Output KW:

2.2

Output RPM:

1170

Frame Size NEMA:

213T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Voltage:

230/460

Frequency (Hz):

60

APPLICATIONS: For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

FEATURES:

  • Made in U.S.A.
  • Aluminum frame design
  • Inverter duty insulation system
  • Service factor 1.0
  • Constant HP range at 2x base speed 56 - 256T frames
  • Constant HP range at 1.5x base speed 284T - 445T frames
  • No mounting available for encoder devices
  • Normally enclosed thermostats
  • Precision balanced rotors
  • Footnotes: A, US
