30HP LINCOLN 1750RPM 286T DP 230/460V 3PH MOTOR LM21177

Catalog Number: LM21177
Model Number: SD4P30T61YQ40
Description:  30HP,1750RPM,286T,DP,230/460V,3PH,60HZ
Ship Weight:  350 lbs.

This Lincoln motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This LINCOLN Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

APPLICATIONS: For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans)  variable speed applications within the stated speed range of the motor.

Features Include:

  • Made in the U.S.A.
  • Steel Frame design
  • 10:1 Constant torque speed range at continuous duty of 6-60Hz
  • Variable torque speed range with open loop drive of 0-60Hz
  • Constant horsepower speed range of 2x base speed
    (56-256T frames) or 1.5x base speed (284T-449T frames)
  • Ultimate Spike Defense Insulation System
  • 1.00 service factor on PWM waveform (Frequency drive)
  • 1.15 service factor or better on sine-wave power
  • Precision dynamic balanced rotor assembly
  • Thermal overload protection (Class F Thermostats)
  • Warranty: 42 months from date of manufacture and 36 months
    from date of installation which ever period expires first

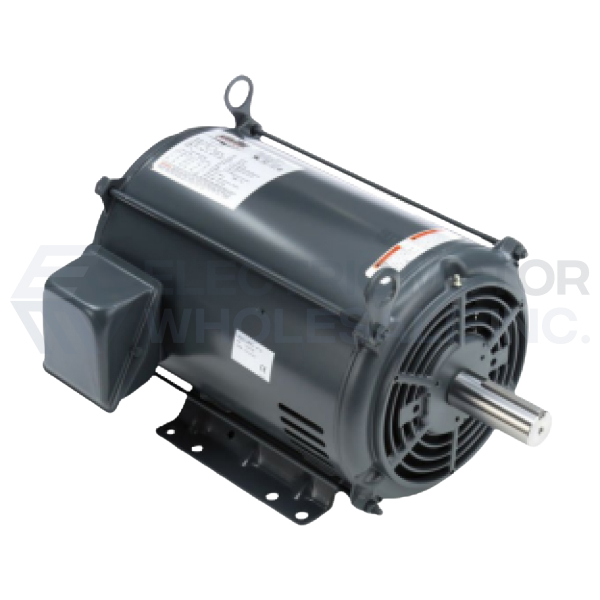

30HP LINCOLN 1750RPM 286T DP 230/460V 3PH MOTOR LM21177
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: LM21177
Stock # LM21177
