25HP LINCOLN 1750RPM 284T DP 230/460V 3PH MOTOR LM21174

Catalog Number: LM21174
Model Number: SD4P25T61YQ40
Description:  25HP,1750RPM,284T,DP,230/460V,3PH,60HZ
Ship Weight:  325 lbs.

This Lincoln motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans)  variable speed applications within the stated speed range of the motor.

Features Include:

  • Made in the U.S.A.
  • Steel Frame design
  • 10:1 Constant torque speed range at continuous duty of 6-60Hz
  • Variable torque speed range with open loop drive of 0-60Hz
  • Constant horsepower speed range of 2x base speed
    (56-256T frames) or 1.5x base speed (284T-449T frames)
  • Ultimate Spike Defense Insulation System
  • 1.00 service factor on PWM waveform (Frequency drive)
  • 1.15 service factor or better on sine-wave power
  • Precision dynamic balanced rotor assembly
  • Thermal overload protection (Class F Thermostats)
  • Warranty: 42 months from date of manufacture and 36 months
    from date of installation which ever period expires first

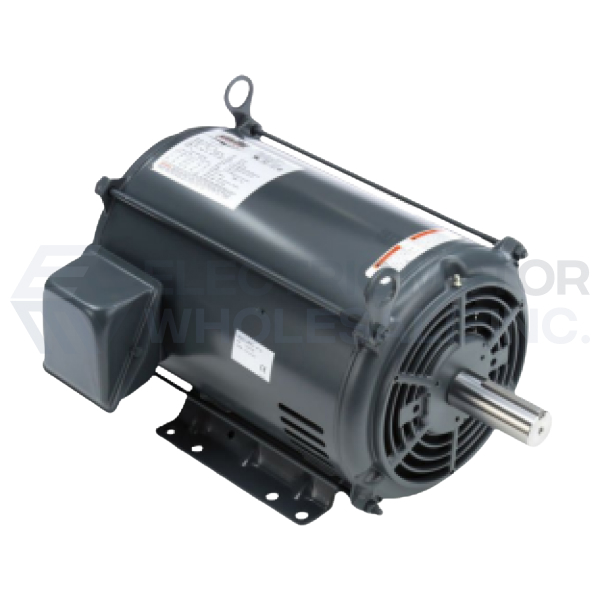

25HP LINCOLN 1750RPM 284T DP 230/460V 3PH MOTOR LM21174
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: LM21174
Stock # LM21174
