1.5HP LINCOLN 3450RPM 182U TENV 3PH MOTOR LM21084

LINCOLN Catalog Number:  LM21084
Description:  1.5HP,3450RPM,182U,TENV,3PH,60HZ
Ship Weight:  87 lbs.



Subject to availability, call for lead times.

LINCOLN Three Phase TE U-FRAME Automotive Duty MotorsFor use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors

Speed ranges (continuous duty) on variable-frequency electronic
speed controls (inverters):

P efficiency codes: Constant torque, 6 to 60 Hz
Variable torque, 3 to 60 Hz

G efficiency codes: Constant torque, 15 to 60 Hz
Variable torque, 6 to 60 Hz

Features Include:

  • Made In U.S.A.
  • Meets NEMA U-Frame dimensional and performance standards.
  • Exceeds General Motors GM-7EH and -7EQ, FordEM1, and Chrysler NPEM-100 specifications. Exceed NEMA MG-1, Section IV, Part 31 spike resistance requirements.
  • NEMA Design B Performance.
  • Nameplated 1.15 service factor, 40°C ambient and 1.00 service factor, 65°C ambient.
  • Inverter-Rated
  • Premium Class F Insulation System.
  • Lower noise designs improve plant sound quality.
  • UL Recognized Component Listing and CSA Approval.
  • Warranty – (sine-wave power) 42 months from date of manufacture
    and 36 months from date of installation which ever period expires first.
    (inverter power) 30 months from date of manufacture and 24 months from date of installation which ever period expires first.
Volts 460 Volts   Volts
F.L. Amps 2 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 3600 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TTS
KW 1.119
Frame 182U Serv. Factor 1.0 Phase 3
Max Amb 65 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75%   PF 87
UL V-INS, CONST UL REC CSA Yes Bearing OPE 205
CC Number EXEMPT CE Yes Bearing PE 206
Load Type   Inverter Type NONE Speed Range NONE

Motor Wt. 87 LB Enclosure TENV Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

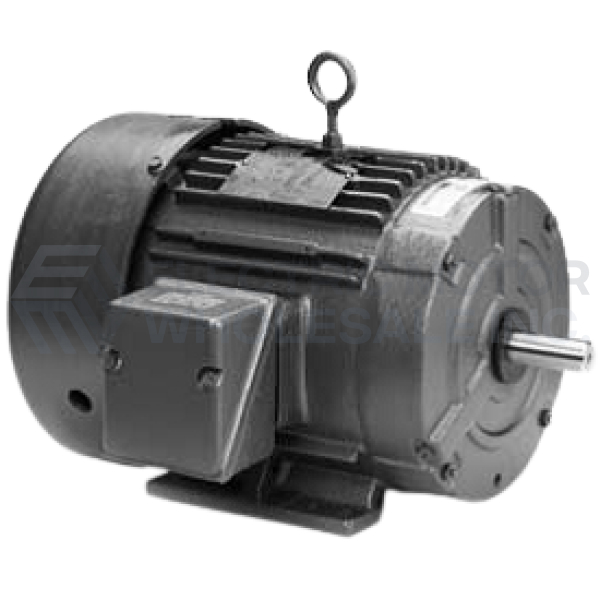

1.5HP LINCOLN 3450RPM 182U TENV 3PH MOTOR LM21084
Click Image to Enlarge
Manufacturer Part Number: LM21084
Stock # LM21084
