7.5HP LINCOLN 3530RPM 215U TEFC 460V 3PH Automotive U-Frame Motor LM20393

7.5HP LINCOLN 3530RPM 215U TEFC 460V 3PH Automotive U-Frame Motor LM20393

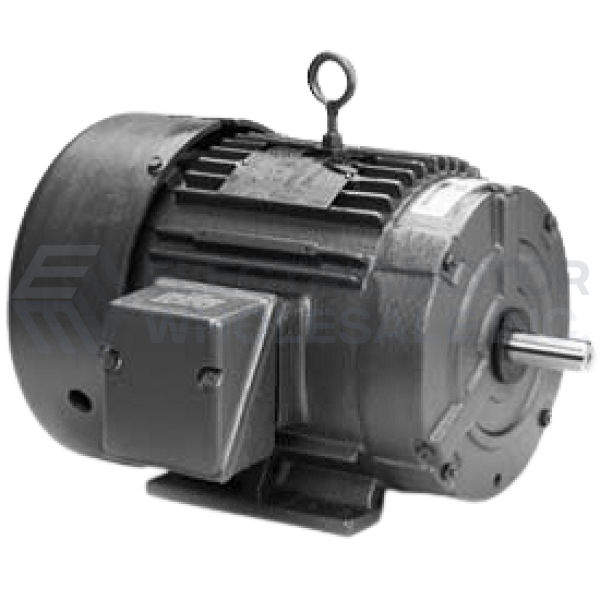

Picture is for reference only.

Part Number:

LM20393

Model/Spec Number:

CCF2P7.5U64

Manufacturer:

Lincoln
LM20393 LINCOLN 7.5HP Electric Motors for use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors.

Item Discontinued

Click below to request an agent review potential options.

Weight:

194 lbs

Dimensions:

13 x 26 x 13 inches

UPC:

691720065341

Technical Details

Brand:

Lincoln

Application:

Automotive Duty

Output HP:

7.5

Output KW:

5.5

Output RPM:

3530

Frame Size NEMA:

215U

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Voltage:

460

Frequency (Hz):

60

Motor Drawing

Connection Diagram
