3HP LINCOLN 1170RPM 215U TEFC 3PH MOTOR LM20391

LINCOLN Catalog Number:  LM20391
Description:  3HP,1170RPM,215U,TEFC,3PH,60HZ
Ship Weight:  189 lbs.

Subject to availability, call for lead times.

LINCOLN Three Phase TE U-FRAME Automotive Duty MotorsFor use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors

Speed ranges (continuous duty) on variable-frequency electronic
speed controls (inverters):

P efficiency codes: Constant torque, 6 to 60 Hz
Variable torque, 3 to 60 Hz

G efficiency codes: Constant torque, 15 to 60 Hz
Variable torque, 6 to 60 Hz

Features Include:

  • Made In U.S.A.
  • Meets NEMA U-Frame dimensional and performance standards.
  • Exceeds General Motors GM-7EH and -7EQ, FordEM1, and Chrysler NPEM-100 specifications. Exceed NEMA MG-1, Section IV, Part 31 spike resistance requirements.
  • NEMA Design B Performance.
  • Nameplated 1.15 service factor, 40°C ambient and 1.00 service factor, 65°C ambient.
  • Inverter-Rated
  • Premium Class F Insulation System.
  • Lower noise designs improve plant sound quality.
  • UL Recognized Component Listing and CSA Approval.
  • Warranty – (sine-wave power) 42 months from date of manufacture
    and 36 months from date of installation which ever period expires first.
    (inverter power) 30 months from date of manufacture and 24 months from date of installation which ever period expires first.
Volts 460 Volts   Volts
F.L. Amps 4.4 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 1200 Hertz 60
HP 3 Duty CONTINUOUS TYPE TFS
KW 2.24
Frame 215U Serv. Factor 1.0 Phase 3
Max Amb 65 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 70
UL V-INS, CONST UL REC CSA Yes Bearing OPE 206
CC Number CC004A CE Yes Bearing PE 307
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 189 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

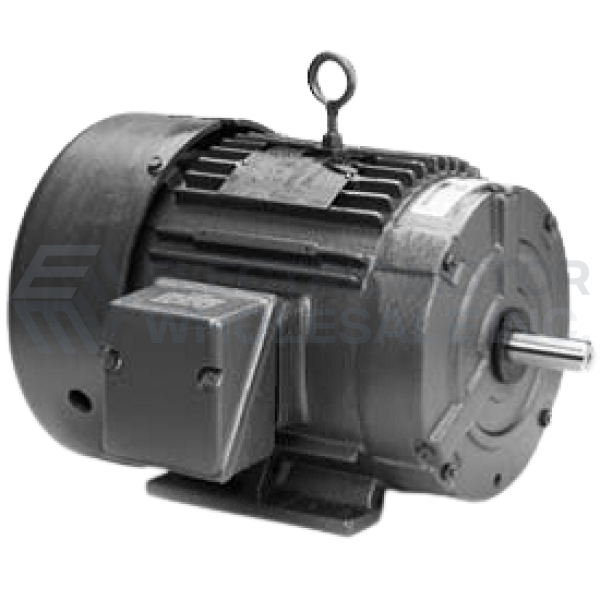

3HP LINCOLN 1170RPM 215U TEFC 3PH MOTOR LM20391
Click Image to Enlarge
Manufacturer Part Number: LM20391
Stock # LM20391
Price: $993.00
Compare At: $2,507.00
