10HP LINCOLN 1750RPM 256U TENV 3PH MOTOR LM20390

LINCOLN Catalog Number:  LM20390
Description:  10HP,1750RPM,256U,TENV,3PH,60HZ
Ship Weight:  301 lbs.



This Lincoln Motor is Subject to availability, call for lead times.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

LINCOLN 3-Phase TE U-FRAME Automotive Duty MotorsFor use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors

  • Speed ranges (continuous duty) on variable-frequency electronic speed controls (inverters):
  • P efficiency codes: Constant torque, 6 to 60 Hz Variable torque, 3 to 60 Hz
  • G efficiency codes: Constant torque, 15 to 60 Hz Variable torque, 6 to 60 Hz

Features Include:

  • Made In U.S.A.
  • Meets NEMA U-Frame dimensional and performance standards.
  • Exceeds General Motors GM-7EH and -7EQ, FordEM1, and Chrysler NPEM-100 specifications. Exceed NEMA MG-1, Section IV, Part 31 spike resistance requirements.
  • NEMA Design B Performance.
  • Nameplated 1.15 service factor, 40°C ambient and 1.00 service factor, 65°C ambient.
  • Inverter-Rated
  • Premium Class F Insulation System.
  • Lower noise designs improve plant sound quality.
  • UL Recognized Component Listing and CSA Approval.
  • Warranty – (sine-wave power) 42 months from date of manufacture
    and 36 months from date of installation which ever period expires first.
    (inverter power) 30 months from date of manufacture and 24 months from date of installation which ever period expires first.
Volts 460 Volts   Volts
F.L. Amps 12.5 F.L. Amps   F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 10 Duty CONTINUOUS TYPE TFS
KW 7.46
Frame 256U Serv. Factor 1.0 Phase 3
Max Amb 65 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 82
UL V-INS, CONST UL REC CSA Yes Bearing OPE 207
CC Number CC004A CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 301 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

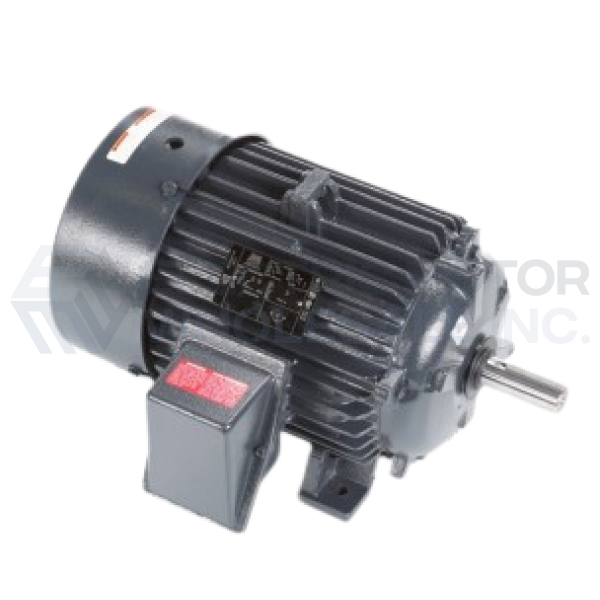

10HP LINCOLN 1750RPM 256U TENV 3PH MOTOR LM20390
Click Image to Enlarge
Manufacturer Part Number: LM20390
Stock # LM20390
Price: $1,475.00
Compare At: $3,723.00
