100HP LINCOLN 1170RPM 444T TEFC 3PH MOTOR LM17733

LINCOLN Catalog Number:  LM17733
Description:  100HP,1170RPM,444T,TEFC,3PH,60HZ
Ship Weight:  1351 lbs.



Subject to availability, call for lead times.

LINCOLN Three Phase TEFC Crusher Duty Motors: Ideally suited for size reduction equipment including rock crushers and pulverizers and other uses in the aggregate and construction industries. Crusher Duty motors are designed for belted (radial) loads only.

Features Include:

  • Made In U.S.A.
  • Drive end roller bearing/Hi-strength steel shaft
  • Superior speed-torque curves - most SF models nameplated Design B & C. All CCS models labeled Design C
  • Steel frame and cast iron end brackets
  • Inverter-Rated
  • Premium Class F Insulation System
  • Across-the-line, Y-Delta (YDS) and Part Winding (PWS) Start capability
  • Installation versatility - mount Lincoln Crusher Duty motors horizontal or vertical shaft down
  • Over temperature protection – Class F thermostats
  • Drive-end roller bearing for belted load applications
  • 4140 grade high strength shaft material
  • Warranty – (sine-wave power and inverter power*) 18
    months from date of manufacture and 12 months from date of
    installation which ever period expires first.
Volts 460 Volts   Volts
F.L. Amps 136 F.L. Amps   F.L. Amps
S. F Amps 153 S. F Amps   S. F Amps

RPM 1200 Hertz 60
HP 100 Duty CONTINUOUS TYPE TFR
KW 75
Frame 444T Serv. Factor 1.15 Phase 3
Max Amb 40 Design C Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95 Eff 75%   PF 72
UL V-INS, CONST UL REC CSA Yes Bearing OPE 315
CC Number CC004A CE Yes Bearing PE NU322
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 1351 LB Enclosure TEFC Lubrication STANDARD
Nameplate 3B451-C-X-BCDLM-G-A-X Mounting RIGID Rotation REV

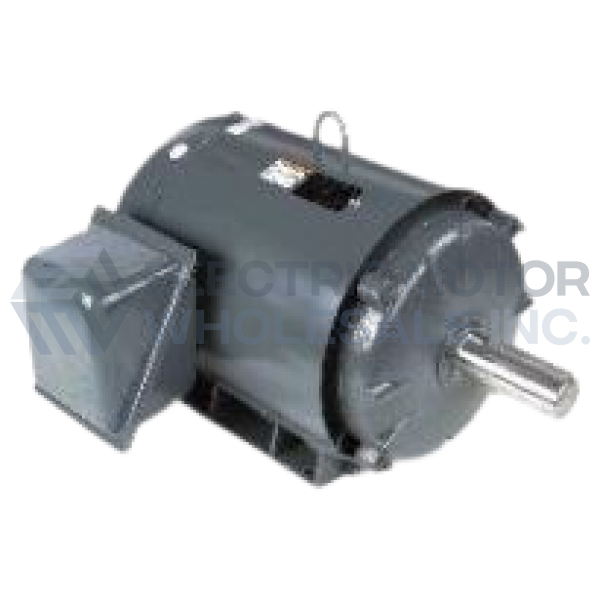

100HP LINCOLN 1170RPM 444T TEFC 3PH MOTOR LM17733
Click Image to Enlarge
Manufacturer Part Number: LM17733
Stock # LM17733
