250HP LINCOLN 1170RPM 449T TEFC 460V 3PH Crusher Duty Motor LM17715

250HP LINCOLN 1170RPM 449T TEFC 460V 3PH Crusher Duty Motor LM17715

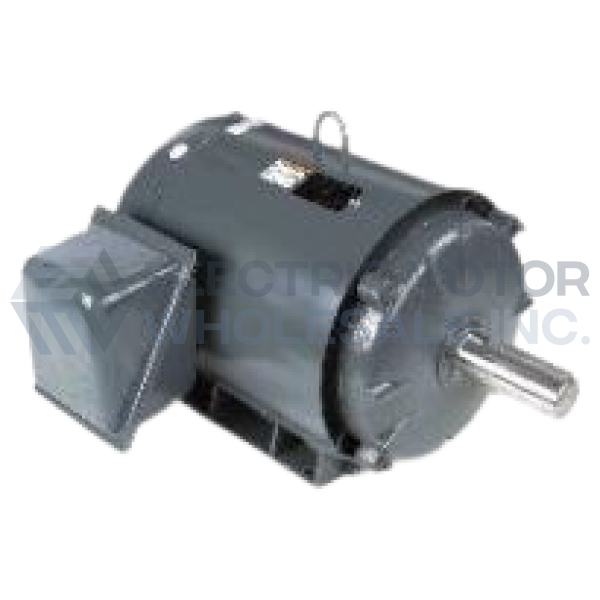

Picture is for reference only.

Part Number:

LM17715

Model/Spec Number:

SF6P250T64PYRBT1

Manufacturer:

Lincoln
LM17715 LINCOLN 250HP Electric Motors for use in size reduction equipment including rock crushers and pulverizes and other uses in the aggregate and construction industries. Crusher Duty motors are designed for belted (radial) loads only.

Item Discontinued

Click below to request an agent review potential options.

Weight:

2,185 lbs

Dimensions:

24 x 36 x 24 inches

Technical Details

Brand:

Lincoln

Application:

Rock Crusher Duty

Output HP:

250

Output KW:

185.0

Output RPM:

1170

Frame Size NEMA:

449T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Voltage:

460

Frequency (Hz):

60
