400HP LINCOLN 1750RPM 449T TEFC 3PH MOTOR LM17706

LINCOLN Catalog Number:  LM17706
Description:  400HP,1750RPM,449T,TEFC,3PH,60HZ
Ship Weight:  3218 lbs.



Subject to availability, call for lead times.

LINCOLN Three Phase TEFC Crusher Duty Motors: Ideally suited for size reduction equipment including rock crushers and pulverizers and other uses in the aggregate and construction industries. Crusher Duty motors are designed for belted (radial) loads only.

Features Include:

  • Made In U.S.A.
  • Drive end roller bearing/Hi-strength steel shaft
  • Superior speed-torque curves - most SF models nameplated Design B & C. All CCS models labeled Design C
  • Full cast iron construction
  • Inverter-Rated
  • Premium Class F Insulation System
  • Across-the-line, Y-Delta (YDS) and Part Winding (PWS) Start capability
  • Installation versatility - mount Lincoln Crusher Duty motors horizontal or vertical shaft down
  • Over temperature protection – Class F thermostats
  • Drive-end roller bearing for belted load applications
  • 4140 grade high strength shaft material
  • Warranty – (sine-wave power and inverter power*) 18
    months from date of manufacture and 12 months from date of
    installation which ever period expires first.
Volts 460 Volts   Volts
F.L. Amps 448 F.L. Amps   F.L. Amps
S. F Amps 515 S. F Amps   S. F Amps

RPM 1800 Hertz 60
HP 400 Duty CONTINUOUS TYPE TFS
KW 300
Frame 447/449T Serv. Factor 1.15 Phase 3
Max Amb 40 Design C Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 96.2 Eff 75%   PF 87
UL V-INS, CONST UL REC CSA Yes Bearing OPE 6318
CC Number CC004A CE Yes Bearing PE NU322
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 2883 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

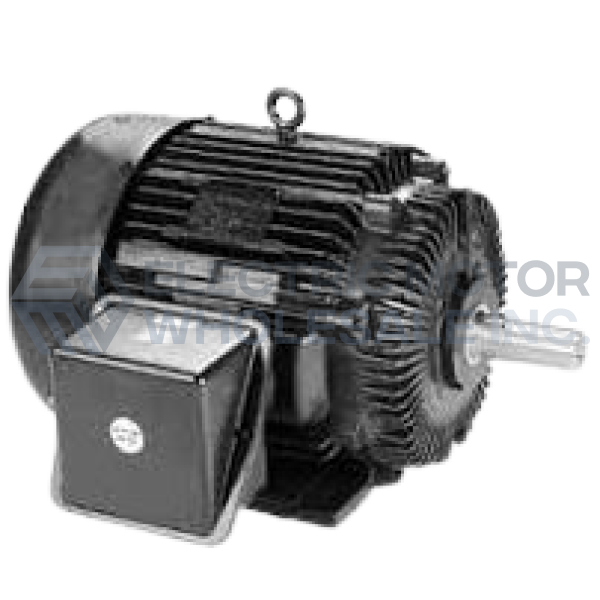

400HP LINCOLN 1750RPM 449T TEFC 3PH MOTOR LM17706
Click Image to Enlarge
Manufacturer Part Number: LM17706
Stock # LM17706
