1HP LINCOLN 1750RPM 56HC TEFC 3PH Inverter Duty Motor LM10340

1HP LINCOLN 1750RPM 56HC TEFC 3PH Inverter Duty Motor LM10340

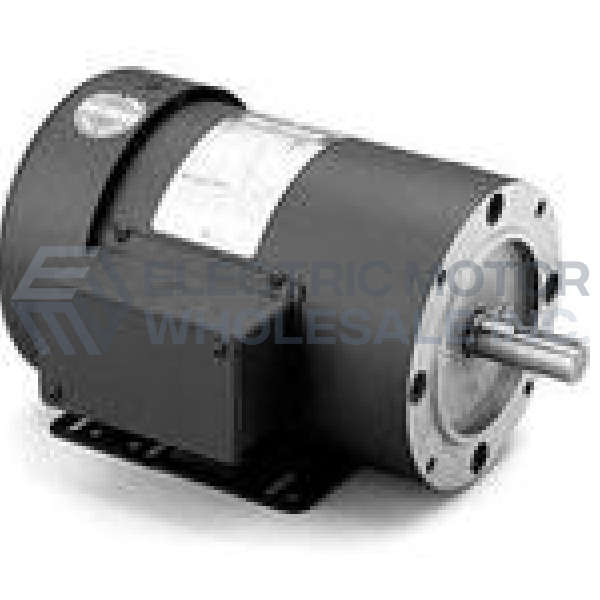

Picture is for reference only.

Part Number:

LM10340

Model/Spec Number:

SRF4S1TC61Q20

Manufacturer:

Lincoln

Manufacturer Part Number:

LM10340
L LM10340 INCOLN 1HP Electric Motors for use in extruders, conveyors, machine tools and other process industries with constant torque, variable speed loads.

Item Discontinued

Click below to request an agent review potential options.

Weight:

29 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

UPC:

691720044865

Technical Details

Brand:

Lincoln

Output HP:

1

Output KW:

0.75

Output RPM:

1750

Frame Size NEMA:

56HC

Mount NEMA:

C Face With Base

Voltage:

230/460

Frequency (Hz):

60

Inverter Rating:

Inverter Ready

CT Speed Range:

10:1

Motor Drawing

Connection Diagram

Volts 230 Volts 460 Volts 200/400
F.L. Amps 3.6 F.L. Amps 1.8 F.L. Amps 3.8/1.9
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/50
HP 1 Duty CONTINUOUS TYPE TS
KW .75
Frame 56HC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 68.4
UL V-OVER TEMP PROT 3, P1-P2 CSA Yes Bearing OPE 203
CC Number EXEMPT CE Yes Bearing PE 203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 27 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV
