3HP LINCOLN 1750RPM 184TC TENV 3PH MOTOR LM03995

LINCOLN Catalog Number:  LM03995
Description:  3HP,1750RPM,184TC,TENV,3PH,60HZ
Ship Weight:  96 lbs.



This Lincoln Motor is a Build To Order product and factory lead times are approximately 4-7 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

Subject to availability, call for lead times.

LINCOLN CONSTANT TORQUE CLOSED LOOP VECTOR C-FACE Electric Motor: For use in demanding industrial applications where premium construction and performance are required. Suitable for use in extruders, conveyors, machine tools and other process industries with constant torque, variable speed loads.

Features Include:

  • Made in the U.S.A.
  • 2000:1 constant torque speed range of 0-60 Hz at continuous
    duty with closed-loop drive.
  • Variable torque speed range of 0-60 Hz.
  • Constant horsepower speed range of 2x base speed.
  • Ultimate Spike DefenseTM Insulation System
  • Ideally suited for IGBT power
  • 1.00 SF, 40°C ambient on PWM waveform
  • Precision dynamic balanced rotor assembly
  • Over temperature protection (Class F thermostat)
  • 1024 ppr encoder with differential line driver
  • Separate terminal box or conduit with terminal block for feedback
    termination
  • Warranty: (CTAC motor) 42 months from date of manufacture and
    36 months from date of installation which ever period expires first.
Volts 230 Volts 460 Volts
F.L. Amps 8.4 F.L. Amps 4.2 F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 1800 Hertz 60
HP 3 Duty CONTINUOUS TYPE TTL
KW 2.238
Frame 184TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code P
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75%   PF 80
UL V-OVER TEMP PROT 3, P1-P2 CSA Yes Bearing OPE 205
CC Number EXEMPT CE Yes Bearing PE 207
Load Type   Inverter Type NONE Speed Range NONE

Motor Wt. 96 LB Enclosure TENV Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

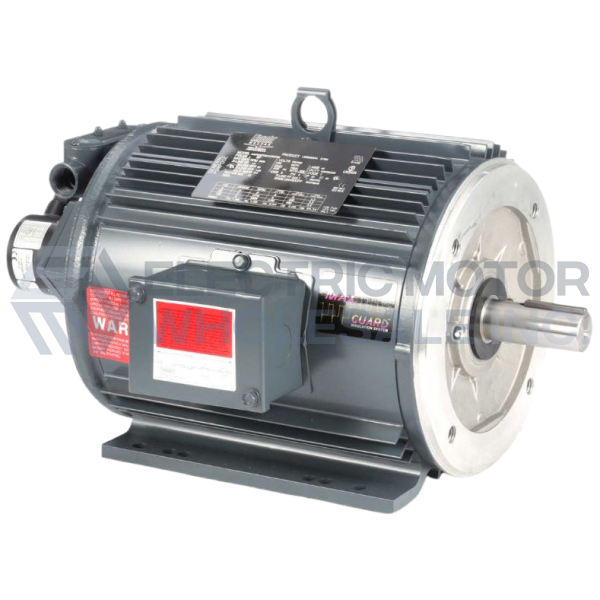

3HP LINCOLN 1750RPM 184TC TENV 3PH MOTOR LM03995
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: LM03995
Stock # LM03995
