1.5HP LEESON 1725RPM 56H DP 115/208-230V 1PH MOTOR 110006.00

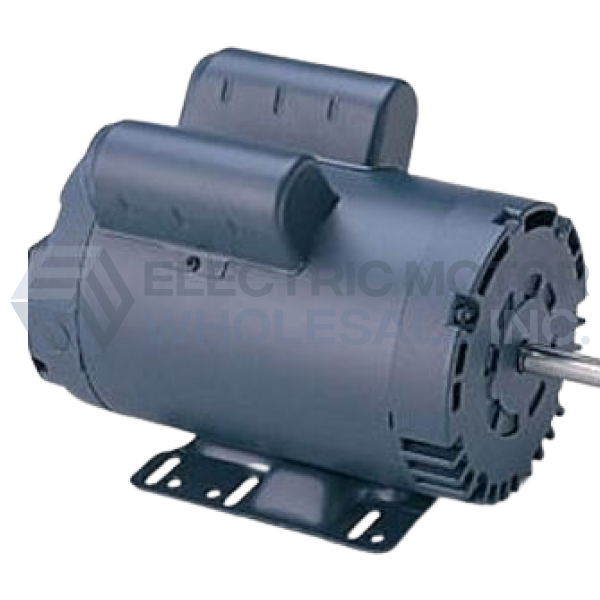

Picture is for reference only.

Part Number:

110006.00

Model/Spec Number:

P6K17DB2G

Manufacturer:

Leeson Obsolete

110006.00 LEESON 1.5HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

40 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.40.6040

Technical Details

Specifications

Application:	General Purpose
Output HP:	1.5
Output KW:	1.1
Output RPM:	1725
Frame NEMA:	56H
Mount NEMA:	Base Mount
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	115	Volts	208-230	Volts
F.L. Amps	17.2	F.L. Amps	8.8-8.6	F.L. Amps
S. F Amps	19	S. F Amps	9.8-9.5	S. F Amps
RPM	1800	Hertz	60
HP	1.5	Duty	CONTINUOUS	TYPE	KD
KW	1.119	Model #	P6K17DB2G
Frame	G56H	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	L	Code	J
Insul Class	B	Protection	MANUAL	Therm.Prot.	CEJ38CA
Eff 100%	79	Eff 75%		PF	73
UL	No	CSA	Yes	Bearing OPE	6203
CC Number		CE	No	Bearing PE	6203
Load Type		Inverter Type	NONE	Speed Range	NONE
Motor Wt.	41 LB	Enclosure	DP	Lubrication	POLYREX EM
Nameplate	004004	Mounting	RIGID	Rotation	SELECTIVE CCW
