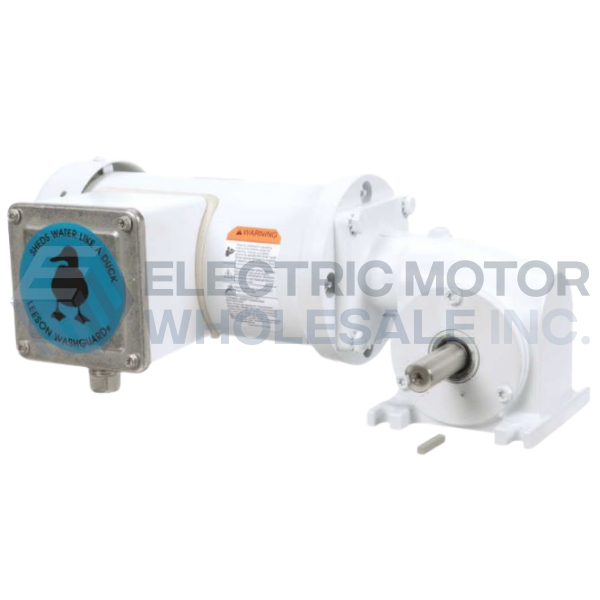

3/8HP LEESON 29RPM 3PH EPOXY WASHDOWN RIGHT ANGLE GEARMOTOR M1145146.00

3/8HP LEESON 29RPM 3PH EPOXY WASHDOWN RIGHT ANGLE GEARMOTOR M1145146.00

Picture is for reference only.

Part Number:

M1145146.00

Model/Spec Number:

M38T17FZ22

Manufacturer:

Leeson Obsolete
M1145146.00 LEESON 3/8HP Three Phase Washguard Right Angle Gearmotor is designed for extended life in applications requiring regular washdown or otherwise wet environments.

Item Discontinued

Click below to request an agent review potential options.

Weight:

20 lbs

Dimensions:

8 x 17 x 8 inches

HS Code:

8501.31.4000

UPC:

691720980163

Technical Details

Design:

Right Angle Solid Shaft

Input HP:

3/8

Output KW:

0.28

Output RPM@60hz:

29

Gear Ratio:

60:1

Torque Lb-in.@60hz:

220

Overhung Load (lb.):

235

Voltage AC:

190/380

Full Load Amp@60hz:

1.3

Frequency (Hz):

60

Product Information Packet
