3/8HP LEESON 43RPM TEFC 3PH RIGHT ANGLE GEARMOTOR M1145128

Catalog Number: M1145128.00
Description: 3/8HP,43RPM,38,TEFC,208-230V,3PH,60HZ
Ship Weight: 18 lbs.

Design Specifications: Three phase Inverter Rated Gear Motor totally enclosed for continuous duty, general purpose applications. Standard on all these ratings is the exclusive Inverter Rated Insulation System (IRIS). This provides superior protection against voltage spikes induced by variable frequency drives. Many superior mechanical features for both the motor and gearbox. Double shielded ball bearings in the motor. Needle bearings in the parallel shaft gearboxes and ball bearings in the Right angel (worm) gearboxes. Steel conduit box provided as standard. Complete gearmotor furnished with high gloss hardened black enamel paint.

Application Notes: These motors are designed with high temp insulation 9 (Class F) to avoid over heating when operated with a PWM inverter down to a 10:1 speed range from the printed gearmotor output RPM. The torque values listed are the recommended full load torque values for reasonable gear life. Overhung load capacities shown are at the center of the output shaft.

RPM 43 Volts   Volts 208-230
HPKW .375 F.L. Amps   F.L. Amps 1.4-1.3
Frame 38 S. F Amps   S. F Amps
Max Amb 40 Hertz   Phase 3
Insul Class F4 Duty CONT TYPE TF
    Serv. Factor 1 PF
Eff 100%   Eff 75%   Enclosure TEFC
Protection NOT Therm.Prot.   Bearing OPE 6201-13
Design   Code G Bearing PE 6201-13
UL Yes CSA Yes CE No
    Nameplate 081188 Lubrication
Series 13 Overrlung Ld. 235 Shaft Type RIGHT-ANGLE

Motor Wt. 18 LB Mounting SPECIAL Rotation RECONN

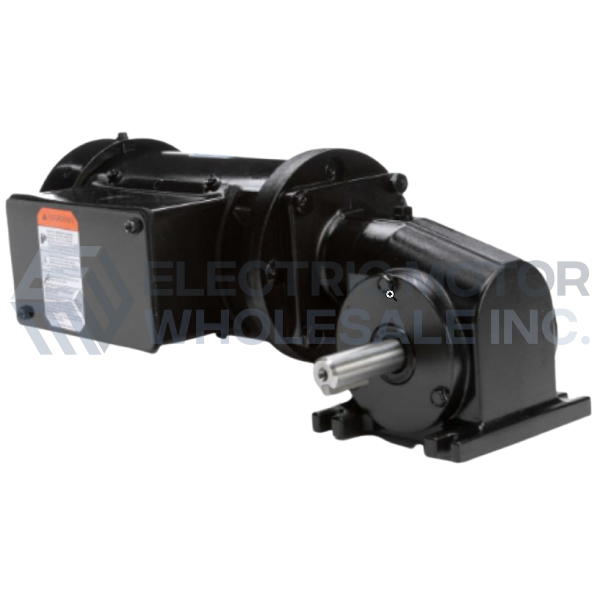

3/8HP LEESON 43RPM TEFC 3PH RIGHT ANGLE GEARMOTOR M1145128
Click Image to Enlarge
Manufacturer Part Number: M1145128.00
Stock # M1145128
Price: $413.00
Compare At: $1,042.00
