Electric Motors

/

Discontinued Electric Motors

/

Leeson Discontinued Motors

/

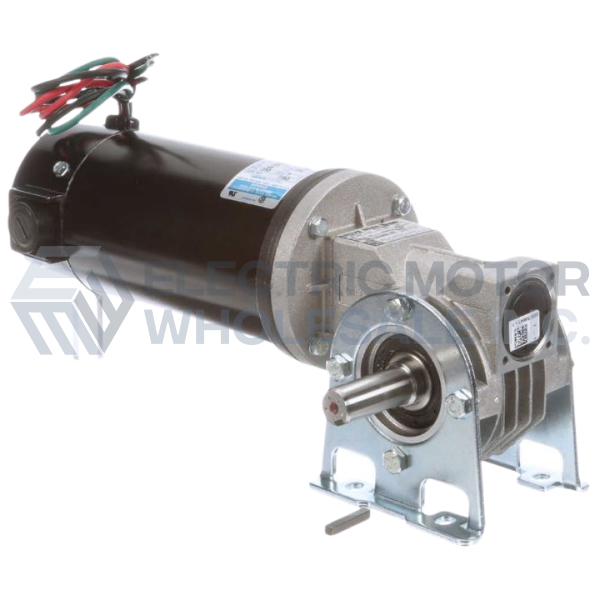

1/4HP LEESON 90RPM TENV 12VDC BRAVO SERIES RIGHT ANGLE GEARMOTOR M1135296.00

1/4HP LEESON 90RPM TENV 12VDC BRAVO SERIES RIGHT ANGLE GEARMOTOR M1135296.00

BRAVO SERIES 12V.jpg

Part Number:

M1135296.00

Model/Spec Number:

M34D17NZ35

Manufacturer:

Leeson Obsolete
M1135296.00 LEESON 1/4HP 90RPM Bravo Series 12 SUB-FHP DC Right Angle Gearmotor is performance matched for continuous duty service. Designed for battery power or can be used with a low-voltage controller with form factor up to 1.05.

Item Discontinued

Click below to request an agent review potential options.

Weight:

13 lbs

Dimensions:

8 x 17 x 8 inches

HS Code:

8501.31.4000

UPC:

691720321881

Technical Details

Design:

Right Angle Shaft

Input HP:

1/4

Output KW:

0.19

Output RPM:

90

Gear Ratio:

19:1

Torque Lb-in.:

100

Voltage:

12

Full Load Amperage:

24.0

Application:

General Purpose

Frame Size:

34

Product Information Packet
