1/8HP LEESON 250RPM 12VDC RIGHT ANGLE GEARMOTOR M1135250.00

Catalog Number:  M1135250.00
Model Number:  CM34D25NZ159
Description:  1/8HP,250RPM,34,TENV,12VDC,RIGHT ANGLE
Ship Weight:  14 lbs.

LEESON Low Voltage 12VDC Totally enclosed, permanent magnet DC gearmotors, performance matched for continuous duty. Motors are designed for battery power or can be used with a low voltage controller with form factor up to 1.05. Conduit box not supplied with gearmotor.

BODINE/DAYTON
Direct Interchange

Mechanical Specification: This worm-type right-angle gearing features hardened steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has all ball bearings the housing is seal and lubrication is permanent with an oil bath. The output shaft is interchangeable from left hand style to right hand style by reassembly.

Application Notes: For optimum seal life, these right-angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather-plug must be reoriented by using a 901/8” NPT taper pipe elbow (see drawing). Elbow not available from LEESON. Vent plug is available (part #M1900177.01) However, the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of output shaft.

RPM 250 Volts 12 Volts
HPKW 1/8 F.L. Amps 11 F.L. Amps
Frame 34 S. F Amps   S. F Amps
Max Amb 40 Hertz   Phase
Insul Class H3 Duty CONT TYPE DN
Model # CM34D25NZ159 Serv. Factor 1.0 PF
Eff 100%   Eff 75%   Enclosure TENV
Protection NOT Therm.Prot.   Bearing OPE 608
Design   Code   Bearing PE 6201-13
UL Yes CSA Yes CE No
Torque lb-In 25 Nameplate M100414702 Lubrication
Series 13 Overhung Ld. 235 Shaft Type RIGHT-ANGLE

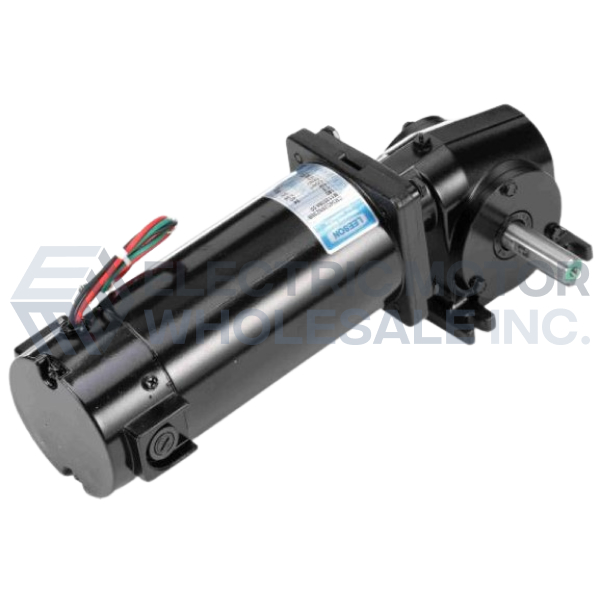

1/8HP LEESON 250RPM 12VDC RIGHT ANGLE GEARMOTOR M1135250.00
