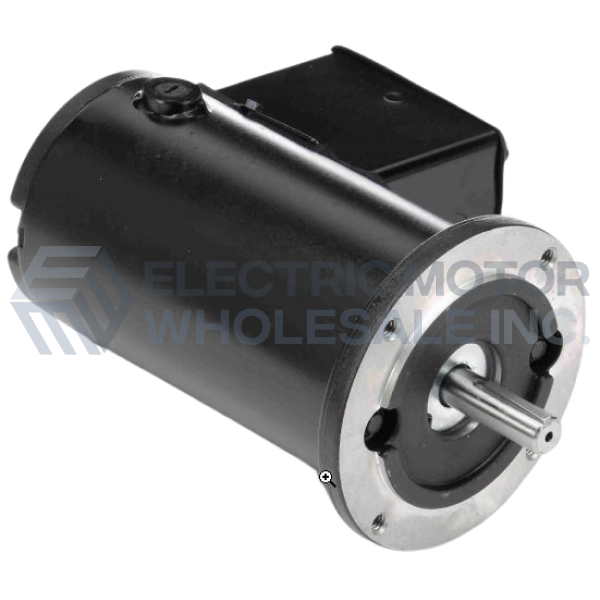

1/8HP LEESON 1750RPM 34 TENV 180VDC PERMANENT MAGNET MOTOR M1130118.00

Part Number:

M1130118.00

Model/Spec Number:

CM34D17NC8

Manufacturer:

Regal Rexnord Commercial

M1130118.00 LEESON 1/8HP 180VDC SUB-FHP DC MOTOR is a precision sub-fractional horsepower DC permanent magnet motors designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

MSRP: $797.00

Regular Price

USD

$

325

00

QTY

Login to View Discounts

Shipping Details

Weight:

14 lbs

Dimensions:

10 x 19 x 9 inches

HS Code:

8501.31.4000

UPC:

691720091371

Technical Details

Specifications

Application:	General Purpose
Output HP:	1/8
Output KW:	0.10
Output RPM:	1750
Frame NEMA:	34
Mount NEMA:	C-Face No Base
Input Voltage DC:	180
Full Load Amps:	0.70
Winding:	Permanent Magnet
Enclosure NEMA:	TENV

Documentation

Product Information Packet

Additional Information

Leeson Precision sub-fractional horsepower DC permanent magnet motors is designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

Mechanical Features: Compact space saving designs. Ball bearings. Long life brushes for demanding applications. Brushes easily replaced without disassembly of the motor. Standard mounted conduit box on 31 and 34 frame models simplifies connections.

Electrical Features: Continuous duty with full wave unfiltered rectified SCR (thyristor) controls. Linear speed torque characteristics throughout the speed range. High starting torques. Reversible rotation from a simple two lead connection.
