1/8HP LEESON 31RPM TENV 12VDC PARALLEL EPOXY WASHGUARD GEARMOTOR M1125267.00
|Catalog Number:||M1125267.00 - FREE Ground Shipping in USA|
|Ship Weight:||12 lbs.|

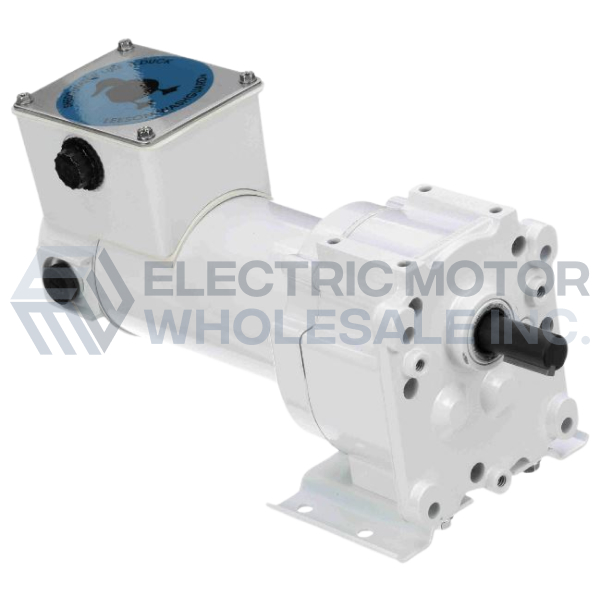

M1125267.00 LEESON 1/8HP 31RPM P300 Series Epoxy Washguard Gearmotor totally enclosed for general purpose applications. Designed for battery power or to be operated from a full-wave unfiltered SCR-type control having form factor up to 1.05.
- Made in the USA
- 5/8" Keyed output shaft with flat
- Precision machined in-line steel gears
- First stage steel helical gear followed by spur-type gears
- Lubrication is permanent semi-fluid grease, reducing possibility of leakage
- Output shafts have needle bearings for high load capacities
- Shafts are hardened steel
- Conduit box is NOT included (see related products)
- Placing the gearmotor with the motor below the gearbox (shaft up with the gearmotor below) should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail
- Motor’s stall torque could exceed recommended full load torques. A current limiting device such as an SCR control should be used to prevent damage. This issue is even more critical for low voltage motors, typically no controller is used since motor is connected directly to a battery, so some type of current limit or fusing should be considered
- Overhung load capacities shown are at center of output shaft
