1/20HP LEESON 9RPM TENV 12VDC OS300 SERIES PARALLEL GEARMOTOR M1125256.00

Catalog Number:  M1125256.00 - FREE Ground Shipping In USA
Model Number:  985.697
Description:  1/20HP,9RPM,30,TENV,12VDC,OS300,PARALLEL OFF-SET SHAFT
F.L. Torque:  268 in-lbs.
Ship Weight:  8 lbs.

This Leeson Gearmotor is a Build To Order product and factory lead times are approximately 6-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

LEESON 12VDC OS300 Series Off-Set Parallel Gearmotor  performance matched for continuous duty service. Designed for battery power or can be operated with a low voltage adjustable speed control having form factor up to 1.05.

Features:

  • 5/8" Keyed output shaft
  • Precision machined in-line steel gears
  • First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Shafts are hardened steel
  • Conduit box is NOT included (see related products)

Application Notes:

  • Placing the gearmotor with the motor below the gearbox should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail
  • Motor’s stall torque could exceed recommended full load torques. A current limiting device such as an
    SCR control should be used to prevent damage. This issue is even more critical for low voltage motors, typically no controller is used since motor is connected directly to a battery, so some type of current limit or fusing should be considered
  • Overhung load capacities shown are at center of output shaft

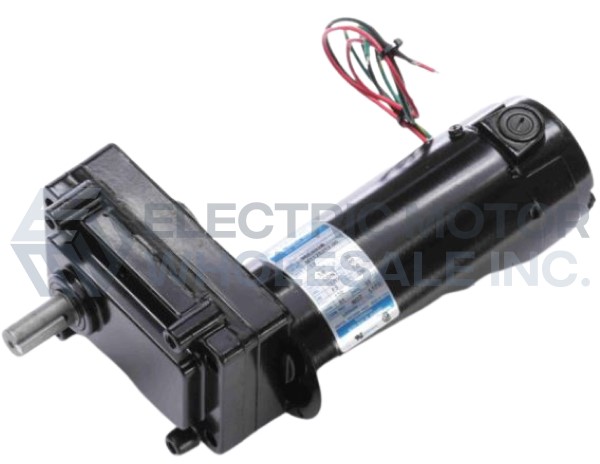

1/20HP LEESON 9RPM TENV 12VDC OS300 SERIES PARALLEL GEARMOTOR M1125256.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1125256.00
Stock # M1125256
Price: $311.00
Compare At: $783.00
