1/8HP LEESON 51RPM 12VDC OS300 SERIES PARALLEL GEARMOTOR M1125252

Catalog Number:  M1125252.00 - FREE Ground Shipping In USA
Model Number:  985.693
Description:  1/8HP,51RPM,30,TENV,12VDC,OS300,PARALLEL OFF-SET SHAFT
F.L. Torque:  130 in-lbs.
Ship Weight:  10 lbs.

LEESON 12VDC OS300 Series Off-Set Parallel Gearmotor  performance matched for continuous duty service. Designed for battery power or can be operated with a low voltage adjustable speed control having form factor up to 1.05.

Features:

  • 5/8" Keyed output shaft
  • Precision machined in-line steel gears
  • First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Shafts are hardened steel
  • Conduit box is NOT included (see related products)

Application Notes:

  • Placing the gearmotor with the motor below the gearbox should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail
  • Motor’s stall torque could exceed recommended full load torques. A current limiting device such as an
    SCR control should be used to prevent damage. This issue is even more critical for low voltage motors, typically no controller is used since motor is connected directly to a battery, so some type of current limit or fusing should be considered
  • Overhung load capacities shown are at center of output shaft

SPECIFICATIONS M1125252.00

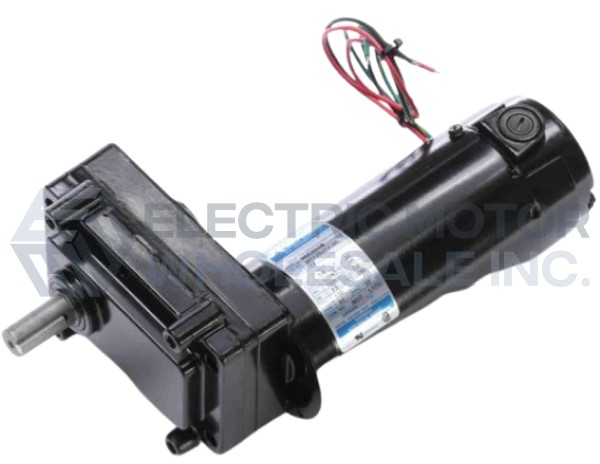

1/8HP LEESON 51RPM 12VDC OS300 SERIES PARALLEL GEARMOTOR M1125252
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1125252.00
Stock # M1125252
Price: $318.00
