1/15HP LEESON 94RPM TEFC 115VAC PZ PARALLEL GEARMOTOR M1125131.00

Catalog Number:  M1125131.00 - FREE Ground Shipping in USA
Model Number:  M31P17FZ5
Description:  1/15HP,94RPM,115VAC,TEFC,PZ SERIES,PARALLEL
F.L. Torque:  36 in-lbs.
Ship Weight:  10 lbs.

LEESON PZ Series 115VAC Parallel SUB-FHP Gearmotor is totally enclosed for continuous duty, general purpose applications. Permanent split capacitor design rated for 115VAC 60HZ input. Direct interchange for Bodine/Bison/Dayton gearmotors.

Design Specifications:

  • 1/2" Keyed output shaft, hardened steel
  • Precision machined in-line steel gears
  • First stage helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing the possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Optional conduit box and PZ gearmotor mounting bracket available

Application Notes:

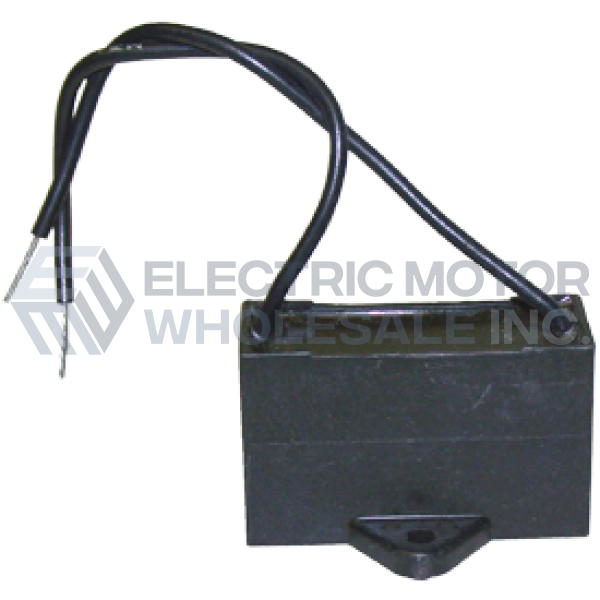

  • All PZ Series gearmotors are supplied with continuous duty “run” capacitor
  • Conduit box is optional and NOT supplied with motor
  • These gearmotors are designed for mounting at any angle, but motor below the reducer (shaft up with motor below) should be avoided to prevent leakage of lubricant into the motor should the shaft seal fail.
  • If these gearmotors are stalled, the motor's stall torque could exceed recommended full load torques causing gearhead damage, especially in ratios of 60:1 and higher. Provisions to limit the torque are recommended.
  • The torque values listed are the recommended full load torque values for reasonable gear life.
  • Overhung load capacities shown are at center of output shaft
  • Model PZ gearmotors have the same mounting dimensions as Bodine model D and Z gearmotors

 BALDOR/BODINE/BISON/DAYTON
Direct Interchange

Please reference all specifications and dimension drawings to ensure a direct replacement.

LEESON Catalog Number:  M1125131.00
BALDOR Direct Interchange: ---
BODINE Direct Interchange: 0453
BISON Direct Interchange:  016-101-0017
DAYTON Direct Interchange:  6A197
1/15HP LEESON 94RPM TEFC 115VAC PZ PARALLEL GEARMOTOR M1125131.00
Click Image to Enlarge
Image is for quick reference only
Manufacturer Part Number: M1125131.00
Stock # M1125131
Price: $275.00
Compare At: $633.00
