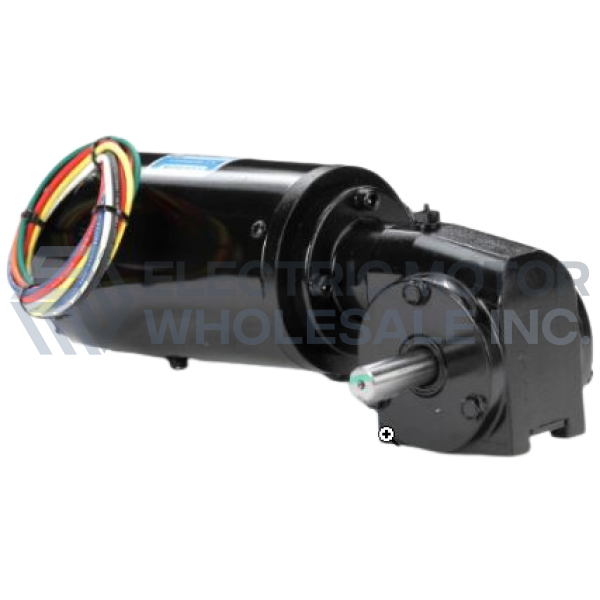

1/15HP LEESON 43RPM TENV 1PH RIGHT ANGLE GEARMOTOR M1125081
LEESON M1125081.00 1/15HP SUB-FHP AC Single phase gearmotors, totally enclosed for continuous duty, general purpose applications. Permanent split capacitor motors rated 115/230 VAC, 60/50 hertz input, and have starting torque equal to the running torque.
Design Specification: LEESON worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has all ball bearings. The house is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to right hand style.
Application Notes: Conduit box is optional and not supplied with motor.
For optimum seal life, these right angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather-plug must be reoriented by using a 901/8” NPT taper pipe elbow (see drawing). However the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of output shaft. These motors are supplied with continuous duty “run” capacitor.
|HPKW||.06/.06||F.L. Amps||.9/.45||F.L. Amps||.9/.45|
|Frame||31||S. F Amps||S. F Amps|
|Torque lb-In||34||Serv. Factor||1.0/1.0||PF|
|Eff 100%||Eff 75%||Enclosure||TENV|
|Series||10||Overrlung Ld.||185||Shaft Type||RIGHT-ANGLE|
