1/50HP LEESON 2RPM 115VAC 1PH PARALLEL GEARMOTOR M1125050

LEESON M1125050 1/50HP SUB-FHP AC Single phase gearmotor is totally enclosed for continuous duty, general purpose applications. Permanent split capacitor motors rated 115/230 VAC, 60/50 hertz input, and have starting torque equal to the running torque.

BODINE/BISON/DAYTON
Direct Interchange

Design Specifications: LEESON Parallel Shaft PZ Series incline gearing is of precision machined steel, with first stage steel helical gear followed by spur type gears. Lubrication is by semi-fluid grease, reducing possibility of leakage and providing permanent lubrication. Output shafts have needled bearings for high load capacities. Shafts are hardened steel

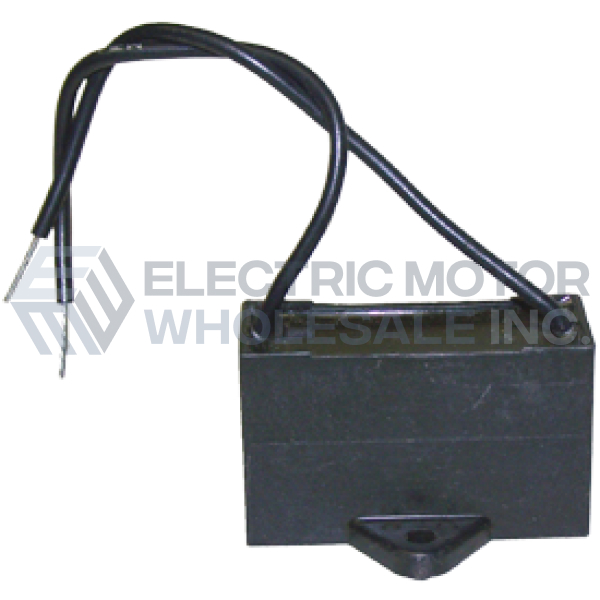

Application NotesAll PZ Series gearmotors are supplied with continuous duty “run” capacitor. Conduit box is optional and NOT supplied with motor.
These gearmotors are designed for mounting at any angle, but shaft up with motor below should be avoided to prevent leakage of lubricant into the motor should the motor’s shaft seal fail. If these gearmotors are stalled, gearhead damage may result, especially in the ratios of 60:1 and higher. Provisions to limit the torque are recommended. Full load torque values for reasonable gear life. Overhung load capacities shown are at the center of output shaft. Model PZ gearmotors have the same mounting dimensions as Bodine model D and Z gearmotors

RPM 1.9 Volts   Volts 115
HPKW .007 F.L. Amps   F.L. Amps .4
Frame 31 S. F Amps   S. F Amps
Max Amb 40 Hertz 60 Phase 1
Insul Class F4 Duty CONT TYPE PN
Torque Lb-In 100 Serv. Factor 1.0 PF
Eff 100%   Eff 75%   Enclosure TENV
Protection NOT Therm.Prot.   Bearing OPE
Design   Code   Bearing PE
UL Yes CSA Yes CE No
Model # CM31P17NZ1 Nameplate M1004149.02 Lubrication
Series PZ Overrlung Ld. 155 Shaft Type PARALLEL
1/50HP LEESON 2RPM 115VAC 1PH PARALLEL GEARMOTOR M1125050
Click Image to Enlarge
Manufacturer Part Number: M1125050.00
Stock # M1125050
Price: $237.00
Compare At: $598.00
Quantity:
