1/40HP LEESON 4RPM 180VDC PZ SERIES PARALLEL GEARMOTOR M1125046

LEESON PZ SERIES DC, SCR Rated, Totally enclosed, permanent magnet gearmotor, performance matched for continuous duty service over a 60:1 speed range. All have constant torque throughout the range when powered by a full-wave unfiltered SCR-type adjustable speed control having a typical form factor of 1.3 to 1.4.

Model PZ gearmotors have the same mounting dimensions as Bodine model D and Z, Baldor/Boehm, Bison 100 gearmotors, and a number of Dayton gearmotors.

Mechanical Specifications:
Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Conduit Box not included with motor.

Application Notes:
These gearmotors are designed for mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail. The motor’s stall torque could exceed recommended full load torques. If this service is anticipated, a current limiting device should be used. This issue is even more critical for low voltage motors, typically no controller is used since motor connected directly to battery, so some type of current limit or fusing should be considered.Overhung load capacities shown are at the center of output shaft.

RPM 4 Volts 180 Volts
HPKW 1/40 F.L. Amps .20 F.L. Amps
Frame 31 S. F Amps   S. F Amps
Max Amb 40 Hertz   Phase
Insul Class F3 Duty CONT TYPE DN
Model # CM31D18NZ41 Serv. Factor 1.0 PF
Eff 100%   Eff 75%   Enclosure TENV
Protection NOT Therm.Prot.   Bearing OPE 608
Design   Code   Bearing PE 6000
UL Yes CSA Yes CE No
Torque lb-In 40 Nameplate M100414702 Lubrication
Series PZ Overhung Ld. 155 Shaft Type PARALLEL
1/40HP LEESON 4RPM 180VDC PZ SERIES PARALLEL GEARMOTOR M1125046

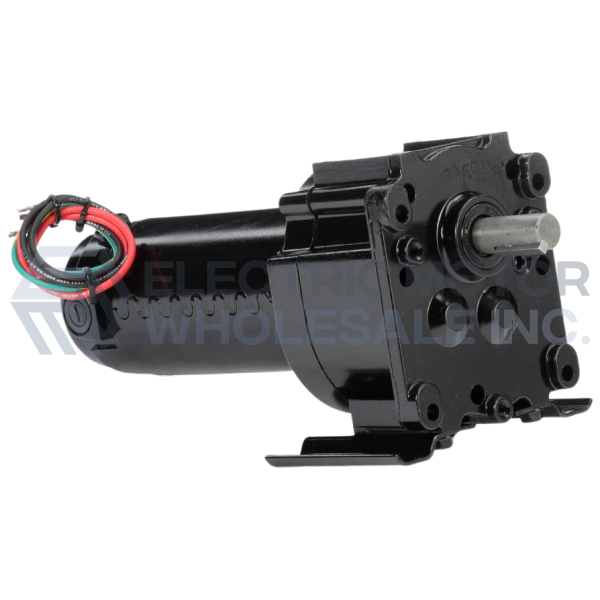

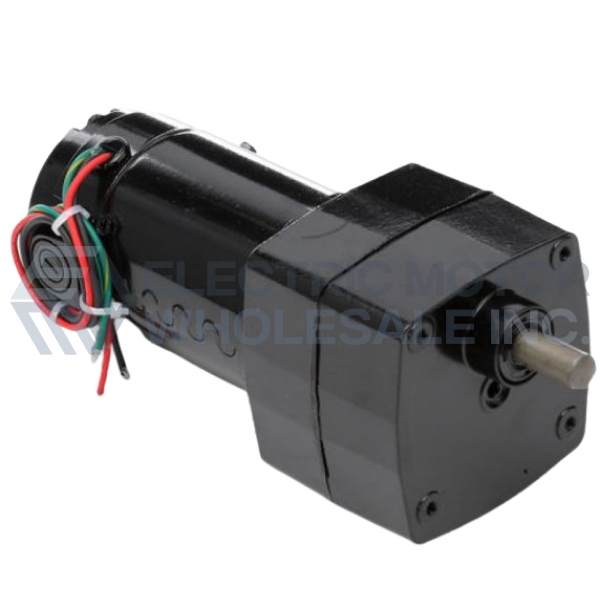

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1125046.00
Stock # M1125046
Price: $228.00
Compare At: $574.00
Quantity:
