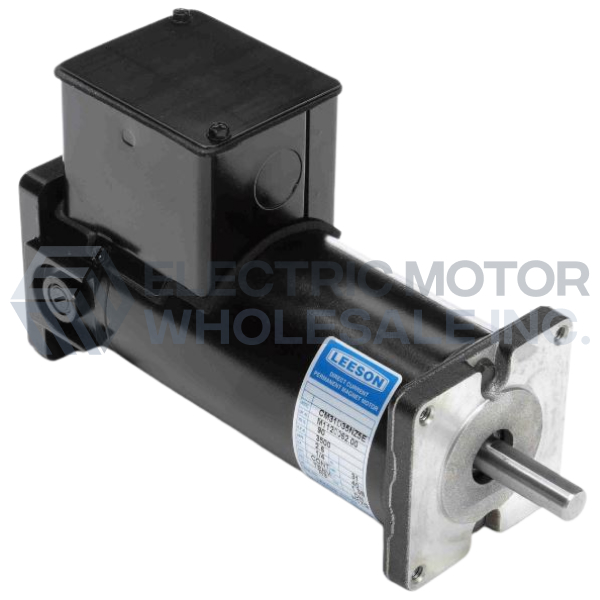

1/4HP LEESON 3500RPM 31 TENV 90VDC PERMANENT MAGNET MOTOR M1120062.00

Leeson Precision sub-fractional horsepower DC permanent magnet motors is designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

Mechanical Features: Long life brushes for demanding applications. Brushes easily replaced without disassembly of the motor. Standard mounted conduit box on 31 and 34 frame models simplifies connections.

Electrical Features: Continuous duty with full wave unfiltered rectified SCR (thyristor) controls. Linear speed torque characteristics throughout the speed range. High starting torques. Reversible rotation from a simple two lead connection.

• Compact and space saving design
• Ball bearings.
• External access to brushes supports easy replacement for prolonged motor life.
• Double-shielded ball bearings provide longer service life.
• Reversible rotation allows greater flexibility within the application
• High starting torque on start-up, to achieve a higher starting load required in sub-fractional applications.
