1/8HP LEESON 1750RPM 31 TENV 90VDC MOTOR M1120027.00

Catalog Number: M1120027.00
Model Number: CM31D18NZ10F
Description: 1/8HP,1750RPM,31ES,TENV,90VDC
Ship Weight: 10 lbs.

Leeson Precision sub-fractional horsepower DC permanent magnet motors is designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

Mechanical Features: Compact space saving designs. Ball bearings. Long life brushes for demanding applications. Brushes easily replaced without disassembly of the motor. Standard mounted conduit box on 31 and 34 frame models simplifies connections.

Electrical Features: Continuous duty with full wave unfiltered rectified SCR (thyristor) controls. Linear speed torque characteristics throughout the speed range. High starting torques. Reversible rotation from a simple two lead connection.

RPM 1750 HP 1/8 Serv. Factor 1.3
KW   Form Factor 1.38 Amps 1.3
KW2   Form Factor 2   FLA2
Volts 90 Frame 31
Max Amb 40 Duty CONT TYPE DN
Insul Class H Enclosure TENV Bearing OPE 6201-13
Protection NOT Protector   Bearing PE 6201-13
EFF 73% Torque 72 OZ-IN
UL Yes CSA Yes CE Yes
Motor Wt. 8 LB Nameplate M100414802 Lubrication POLYREX EM
Carton Label Subfrac Individual
Assembly M1041223 Mounting SQ. FLANGE Rotation RECONN

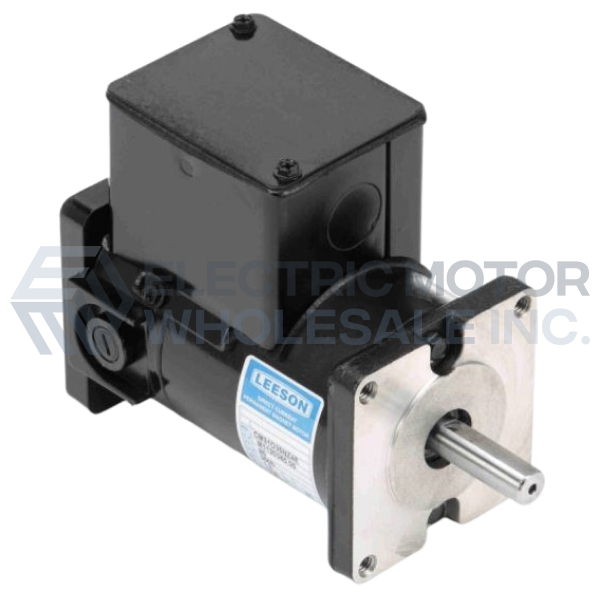

1/8HP LEESON 1750RPM 31 TENV 90VDC MOTOR M1120027.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1120027.00
Stock # M1120027
Price: $172.00
Compare At: $449.00
