M1120014.00 LEESON 1/10HP 90VDC MOTOR CM31D17NZ2

Electric Motors

Discontinued Electric Motors

Leeson Discontinued Motors

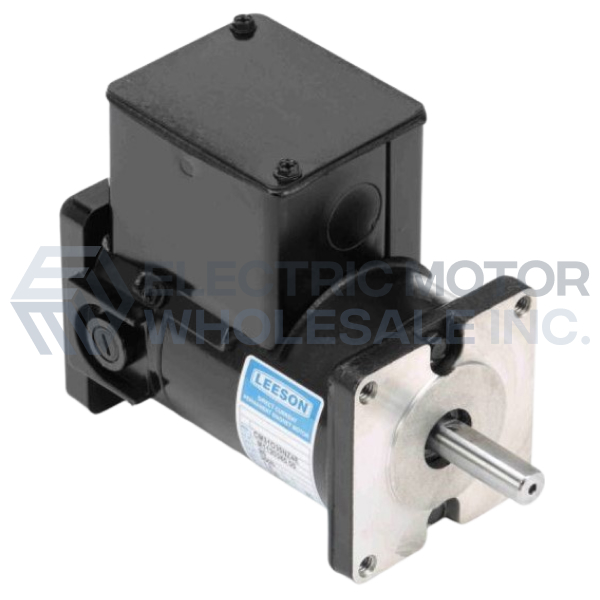

1/10HP LEESON 1750RPM 31 TENV 90VDC MOTOR M1120014.00

Part Number:

M1120014.00

Model/Spec Number:

CM31D17NZ2

Manufacturer:

Regal Rexnord Commercial

M1120014.00 LEESON 1/10HP 90VDC SUB-FHP DC MOTOR is a precision sub-fractional horsepower DC permanent magnet motors designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

Ordering Notes

Discontinued item with limited availability, subject to prior sale. Please call to confirm availability before ordering. Non-Returnable.

MSRP: $686.00

Regular Price

USD

211

QTY

Shipping Details

Weight:

12 lbs

Dimensions:

10 x 19 x 9 inches

HS Code:

8501.31.4000

UPC:

691720090756

Technical Details

Specifications

Application:	General Purpose
Output HP:	1/10
Output KW:	0.07
Output RPM:	1750
Frame NEMA:	31
Mount NEMA:	Square Flange
Input Voltage DC:	90
Full Load Amps:	1.1
Winding:	Permanent Magnet
Enclosure NEMA:	TENV

Documentation

Product Information Packet

Additional Information

Leeson Precision sub-fractional horsepower DC permanent magnet motors is designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

Mechanical Features: Compact space saving designs. Ball bearings. Long life brushes for demanding applications. Brushes easily replaced without disassembly of the motor. Standard mounted conduit box on 31 and 34 frame models simplifies connections.

Electrical Features: Continuous duty with full wave unfiltered rectified SCR (thyristor) controls. Linear speed torque characteristics throughout the speed range. High starting torques. Reversible rotation from a simple two lead connection.
