1/20HP LEESON 109RPM 90VDC P300 SERIES PARALLEL GEARMOTOR M1115029

Catalog Number: M1115029.00
Model Number: 985.601
Description: 1/20HP,109RPM,30,TENV,90VDC,GEARMOTOR
Ratio: 16:1
Torque (Lb.In.): 27
Ship Weight: 10 lbs.

APPLICATIONS: This gearmotor is designed for mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail. Motor’s stall torque could exceed recommended full load torques. A current limiting device such as an SCR control should be used to prevent damage. This issue is even more critical for low voltage motors, typically no controller is used since motor is connected directly to a battery, so some type of current limit or fusing should be considered. Overhung load capacities shown are at center of output shaft.

FEATURES:

  • Made in the USA
  • Steel frame
  • Precision machined in-line steel gears
  • First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Shafts are hardened steel
  • Conduit box not included, optional conduit box available
  • Bison/Dayton direct interchange
  • Footnotes: S, US
RPM 109 Volts 90 Volts
HPKW 1/20 F.L. Amps 0.54 F.L. Amps
Frame 30 S. F Amps   S. F Amps
Max Amb 40 Hertz   Phase
Insul Class F3 Duty CONT TYPE DN
Model # 985.601 Serv. Factor 1.0 PF
Eff 100%   Eff 75%   Enclosure TENV
Protection NOT Therm.Prot.   Bearing OPE 6000
Design   Code   Bearing PE 6000
UL Yes CSA Yes CE Yes
    Nameplate M100414702 Lubrication
Series P300 Overrlung Ld. 224 Shaft Type PARALLEL
Motor Wt. 10 LB Mounting SPECIAL Rotation RECONN
Carton Label Subfrac Individual Assembly M1041136
Winding MD302125 Shaft Dia. 5/8 Ext. Diag2 M111502900FI

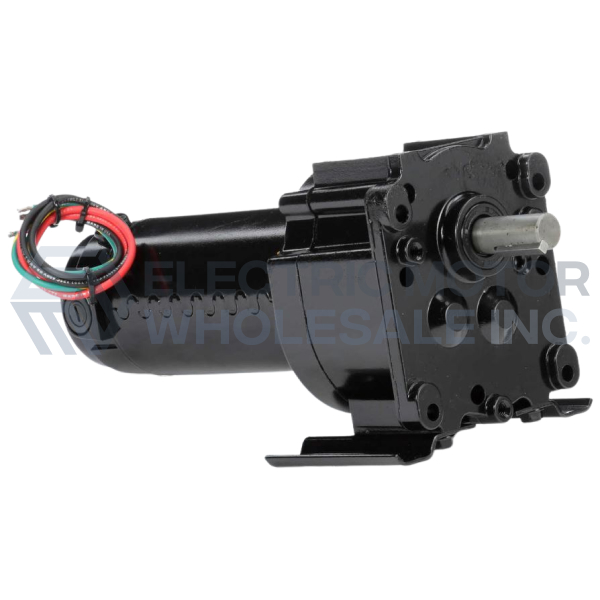

1/20HP LEESON 109RPM 90VDC P300 SERIES PARALLEL GEARMOTOR M1115029
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: M1115029.00
Stock # M1115029
Price: $300.00
Compare At: $757.00
