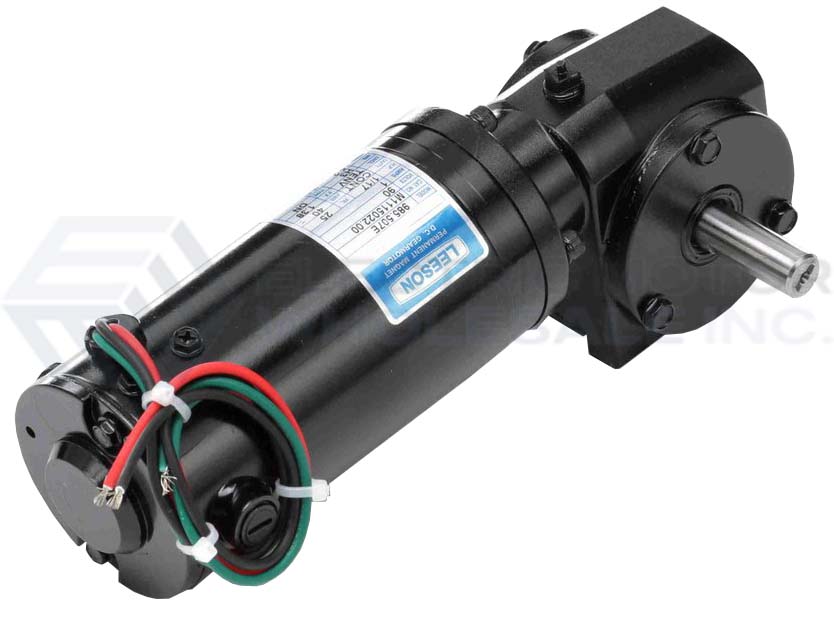

1/17HP LEESON 500RPM 90VDC RIGHT ANGLE GEARMOTOR M1115022.00
|Ship Weight:||6 lbs.|
LEESON SCR Rated Right Angle Gearmotor are performance matched for continuous service over a 60:1 speed range. All have constant torque throughout the speed range when powered by a full-wave, unfiltered SCR-type 115 volt input adjustable speed control having a typical form factor of 1.3 to 1.4.
Mechanical Specification: This worm-type right-angle gearing features hardened steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has all ball bearings the housing is seal and lubrication is permanent with an oil bath. The output shaft is interchangeable from left hand style to right hand style by reassembly.
Application Notes: Conduit box not supplied with motor.
For optimum seal life, these right-angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather-plug must be reoriented by using a 901/8” NPT taper pipe elbow (see drawing). Elbow not available from LEESON. Vent plug is available (part #M1900177.01) However, the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of output shaft.
|HPKW||1/17||F.L. Amps||1||F.L. Amps|
|Frame||25||S. F Amps||S. F Amps|
|Model #||985.507E||Serv. Factor||1.0||PF|
|Eff 100%||Eff 75%||Enclosure||TENV|
|Series||10||Overhung Ld.||185||Shaft Type||RIGHT-ANGLE|
