1/2HP LEESON 1725RPM 48 DP 1PH MOTOR M090585.00

LEESON M090585.00 has been superseded by A090585.00

Catalog Number:  M090585.00
Model Number:  A4K17DR10A
Description:  1/2HP,1725RPM,48,DP,1PH,60HZ,PREMIUM
Ship Weight:  23 lbs.

LEESON Single Phase Resilient Base Motors are Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.

FEATURES:

  • Premium efficient
  • Steel frame
  • 1/2" shaft output diameter
  • Quiet bearings
  • Automatic thermal protection
  • Resilient cradle base
  • Quiet flow-through ventilation
  • Class F insulated
  • Spade connectors on terminal board for quick and easy installation
  • 3 year warranty
  • Non USA Manufactured, MX
Volts 115 Volts   Volts
F.L. Amps 4.6 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE KD
KW .373 Model # A4K17DR10A
Frame 48 Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code
Insul Class B Protection AUTOMATIC Therm.Prot. MEJ28RX
Eff 100% 76 Eff 75%   PF 85
UL Yes CSA Yes Bearing OPE
CC Number   CE No Bearing PE
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 23 LB Enclosure DP Lubrication POLYREX EM
Nameplate   Mounting RESIL Rotation SELECTIVE CCW

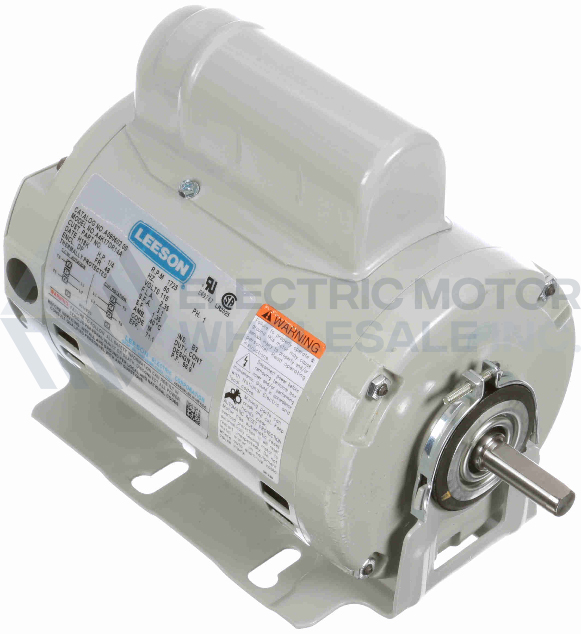

1/2HP LEESON 1725RPM 48 DP 1PH MOTOR M090585.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: M090585.00
Stock # M090585
