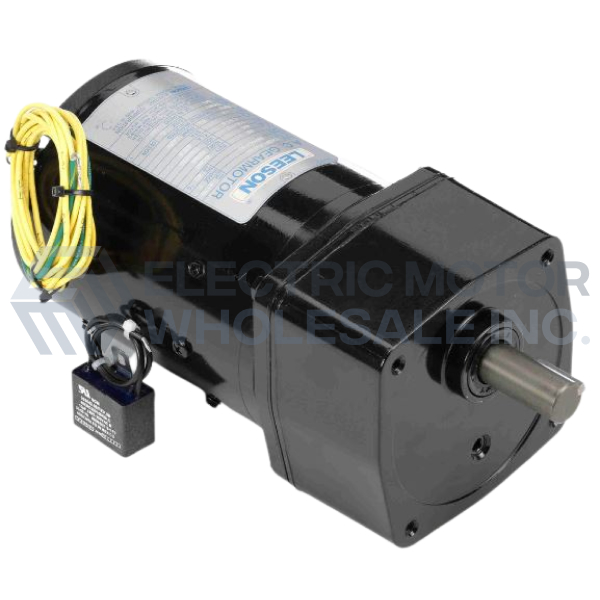

LEESON PE350 Series Single Phase Parallel Shaft Gearmotors

LEESON SUB-FHP PE350 Series Single Phase 115/230VAC Parallel Shaft Gearmotors are totally enclosed for continuous duty, general purpose applications. All rated 115/230VAC 60/50 Hz operation except hi-torque single-phase which are 60 Hz only. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support. Precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload for 200%. Over-sized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit. Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.

Application Notes:

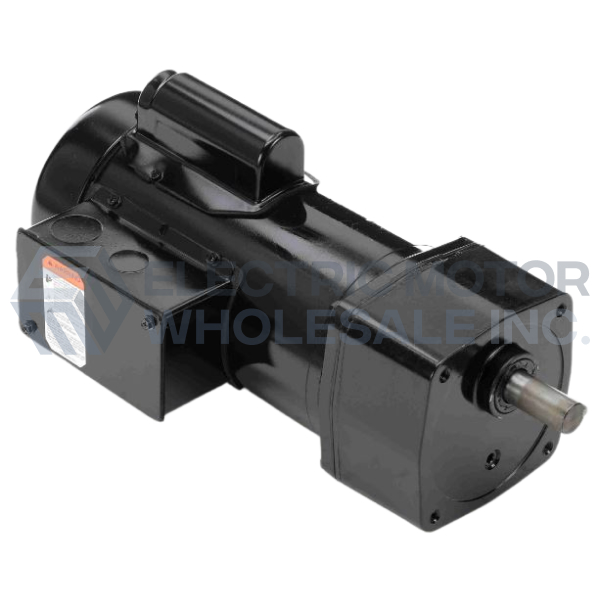

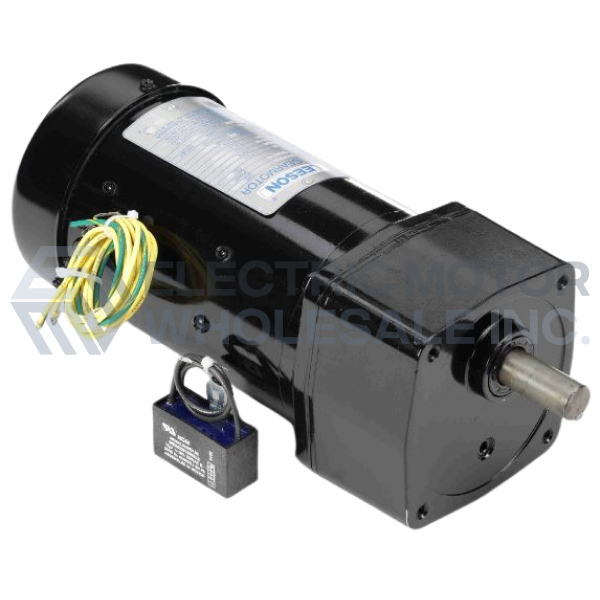

These gearmotors are designed for mounting at any angle, but shaft-up with motor below gearhead is not recommended. Run capacitor supplied with gearmotor at no additional cost. Hi-torque single phase models include conduit box, other single-phase models do not. Check individual product listings to confirm. Overhung load capacities rated are at center of output shaft.

BODINE/BISON/DAYTON
Direct Interchange

LEESON Model PE350 gearmotors have the same mounting dimensions as Bodine’s “E” box and many Baldor/Boehm gearmotors.
