20HP LEESON 1800RPM 256TC EPFC 3PH MOTOR G825198.00

LEESON G825198.00 has been Superseded by 825198.00

Catalog Number:  G825198.00
Catalog Number:  256TTGN14046
Description:  20HP,1800RPM,256TC,EPFC,3PH,EXPLOSION PROOF
Ship Weight:  315 lbs.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 50 F.L. Amps 25 F.L. Amps 45/22.5
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/50
HP 20 Duty CONTINUOUS TYPE TX
KW 14.9 Model # 256TTGN14046 A
Frame 256TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 82
UL NONE CSA No Bearing OPE 6210
CC Number CC005A CE No Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure EPFC Lubrication STANDARD
Nameplate 92720-BM-X-N-A-X-X Mounting ROUND Rotation REV

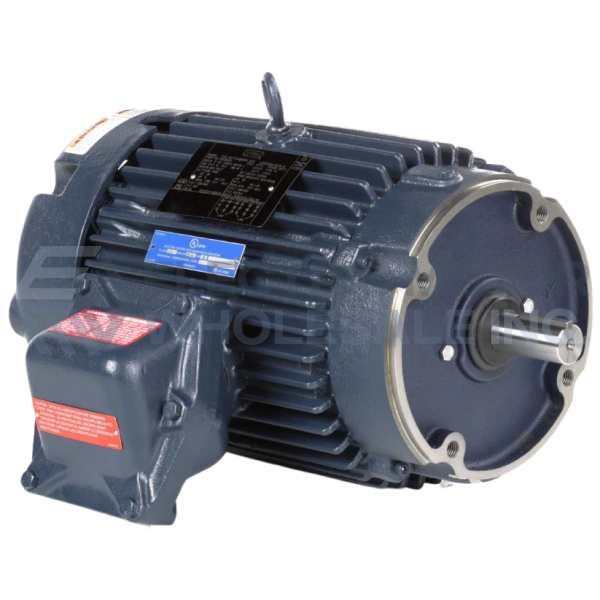

20HP LEESON 1800RPM 256TC EPFC 3PH MOTOR G825198.00
Click Image to Enlarge
Image is for quick reference only
Manufacturer Part Number: G825198.00
Stock # G825198
