15HP LEESON 3600RPM 254TC EPFC 3PH MOTOR G825195.00

LEESON G825195.00 has been discontinued

Catalog Number:  G825195.00
Model Number:  254TTGP14014
Description:  15HP,3600RPM,254TC,EPFC,3PH,EXPLOSION PROOF
Ship Weight:  301 lbs.

Volts
230 Volts 460 Volts 190/380
F.L. Amps 35 F.L. Amps 17.5 F.L. Amps 29/14.5
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TX
KW 11.2 Model # 254TTGP14014 AA
Frame 254TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75%   PF 87
UL NONE CSA No Bearing OPE 6207
CC Number CC005A CE No Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure EPFC Lubrication STANDARD
Nameplate 92720-BM-X-NP-C-X-D Mounting ROUND Rotation REV

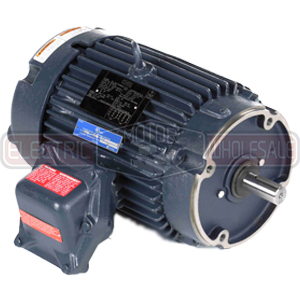

15HP LEESON 3600RPM 254TC EPFC 3PH MOTOR G825195.00
Click Image to Enlarge
Image is for quick reference only
Manufacturer Part Number: G825195.00
Stock # G825195
