50HP LEESON 3600RPM 324JP DP 3PH JP PUMP MOTOR G801060.00

50HP LEESON 3600RPM 324JP DP 3PH JP PUMP MOTOR G801060.00

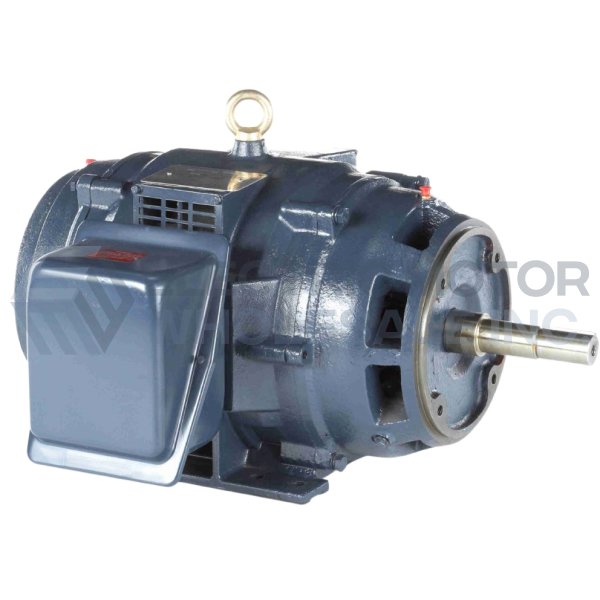

Picture is for reference only.

Part Number:

G801060.00

Model/Spec Number:

324TTDP14014

Manufacturer:

Leeson Obsolete
G801060.00 LEESON 50HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

50

Output KW:

37.0

Output RPM:

3600

Frame Size NEMA:

324JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Volts 230 Volts 460 Volts 190/380
F.L. Amps 117 F.L. Amps 58.5 F.L. Amps 113/56.5
S. F Amps 130 S. F Amps 65 S. F Amps
RPM 3600 Hertz 60/50
HP 50 Duty CONTINUOUS TYPE TD
KW 37 Model Number 324TTDP14014AA
Frame 324JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.4 Eff 75%   PF 86.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6311
CC Number CC005A CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 472 LB Enclosure DP Lubrication STANDARD
Nameplate 92720-BM-X-HJKNP-C-X-X Mounting RIGID Rotation REV
