30HP LEESON 3600RPM 284JP DP 3PH JP PUMP MOTOR G801058.00

30HP LEESON 3600RPM 284JP DP 3PH JP PUMP MOTOR G801058.00

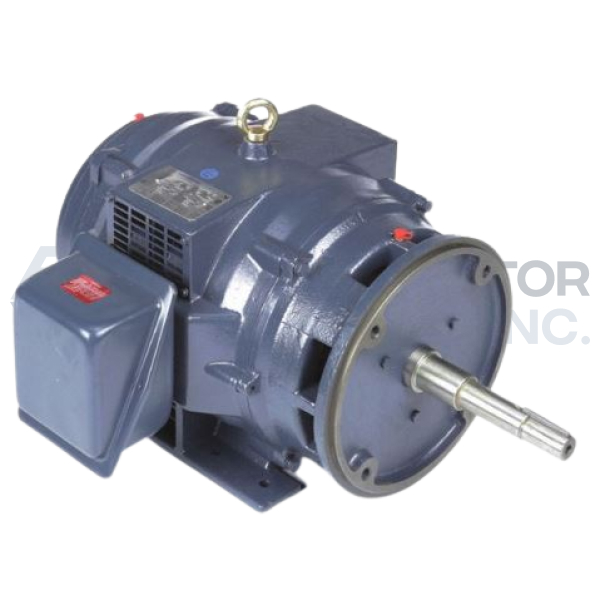

Picture is for reference only.

Part Number:

G801058.00

Model/Spec Number:

284TTDP14012

Manufacturer:

Leeson Obsolete
G801058.00 LEESON 30HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

30

Output KW:

22.4

Output RPM:

3600

Frame Size NEMA:

284JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Volts 230 Volts 460 Volts 190/380
F.L. Amps 72 F.L. Amps 36 F.L. Amps 71/35.5
S. F Amps 80 S. F Amps 40 S. F Amps
RPM 3600 Hertz 60/50
HP 30 Duty CONTINUOUS TYPE TD
KW 22.4 Model Number 284TTDP14012AA
Frame 284JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 85.5
UL V-INS, CONST UL REC CSA No Bearing OPE 6210
CC Number CC005A CE Yes Bearing PE 6311
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 336 LB Enclosure DP Lubrication STANDARD
Nameplate 92720-BM-X-HJKNP-A-X-X Mounting RIGID Rotation REV
