25HP LEESON 1800RPM 284JP DP 3PH JP PUMP MOTOR G801053.00

25HP LEESON 1800RPM 284JP DP 3PH JP PUMP MOTOR G801053.00

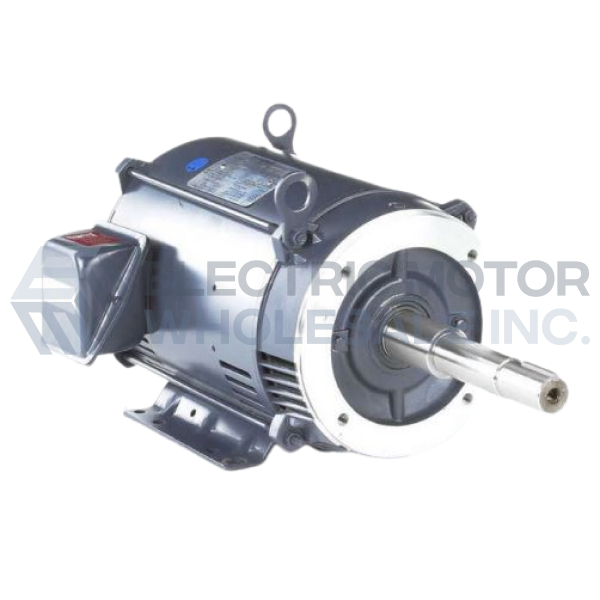

Picture is for reference only.

Part Number:

G801053.00

Model/Spec Number:

284TTDP14048

Manufacturer:

Leeson Obsolete
G801053.00 LEESON, 25HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

332 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

25

Output KW:

18.5

Output RPM:

1800

Frame Size NEMA:

284JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing REF DASH-1275

Connection Diagram

Volts 230 Volts 460 Volts 190/380
F.L. Amps 61 F.L. Amps 30.5 F.L. Amps 59/29.5
S. F Amps 68 S. F Amps 34 S. F Amps
RPM 1800 Hertz 60/50
HP 25 Duty CONTINUOUS TYPE TD
KW 18.7 Model Number 284TTDP14048AA
Frame 284JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE NONE
CC Number CC005A CE Yes Bearing PE NONE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 332 LB Enclosure DP Lubrication STANDARD
Nameplate 92720-BM-X-HJKNP-C-X-X Mounting RIGID Rotation REV
