25HP LEESON 1800RPM 284T 3PH MOTOR G151829

Catalog Number: G151829.60
Model Number: C284T17DB11
Description:  25HP,1800RPM,284T,DP,3PH,60/50HZ
Ship Weight:  317 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.

FEATURES:

  • Cast Iron construction
  • Rigid base
  • 1 7/8" output shaft diameter
  • NEMA Epact efficiency
  • Rodent Screens
  • Re-greasable Bearings
  • 1.15 Service Factor
  • Class F insulation
  • Inverter Duty Insulation System
  • UL Recognized and CSA certified
  • Footnotes: C,CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 64-59 F.L. Amps 29.5 F.L. Amps 57/28.5
S. F Amps 74-68 S. F Amps 34 S. F Amps 65/32.5
RPM 1800 Hertz 60/50
HP 25 Duty CONTINUOUS TYPE TD
KW 18.7 Model # C284T17DB11
Frame 284T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93 Eff 75%   PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6311
CC Number   CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure DP Lubrication STANDARD
Nameplate 080307 Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. 00417201

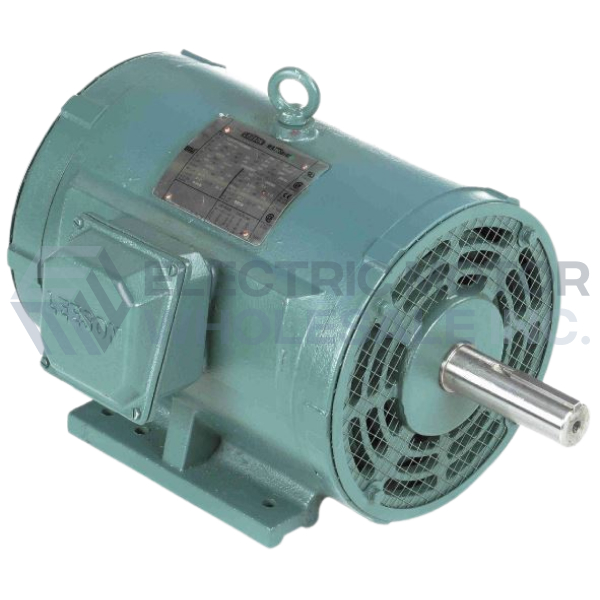

25HP LEESON 1800RPM 284T 3PH MOTOR G151829
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G151829.60
Stock # G151829
