2HP LEESON 3450RPM 145T TEFC 3PH MOTOR G151704
2HP LEESON 3450RPM 145T TEFC 3PH MOTOR G151704

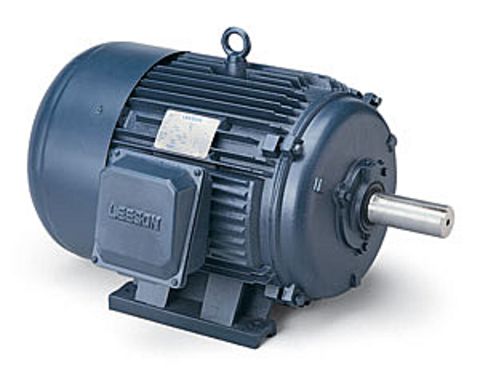

Picture is for reference only.
Part Number:
G151704Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G151704.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
13 x 24 x 13 inchesTechnical Details
Documentation
Additional Information
LEESON G151704.60 has been Superseded by 171648.60
| LEESON Catalog Number: | G151704.60 |
| Description: | 2HP,3450RPM,145T,TEFC,3PH,60HZ |
| Ship Weight: | 50 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- High-quality ball bearings
- Easy-to-read nameplate
- Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
