2HP LEESON 1725RPM 145T TEFC 3PH MOTOR G151703

LEESON G151703.60 Has been Superseded by 171647.60

LEESON Catalog Number:  G151703.60
Description:  2HP,1725RPM,145T,TEFC,3PH,60HZ
Ship Weight:  60 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable cast ironl frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6.4-5.8 F.L. Amps 2.9 F.L. Amps 4.8/2.4
S. F Amps 7.2 S. F Amps 3.6 S. F Amps
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model Number C145T17FB77A
Frame 145T Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 75.5
UL V-INS, CONST UL REC CSA No Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 60 LB Enclosure TEFC Lubrication STANDARD
Nameplate 80306 Mounting RIGID Rotation REV

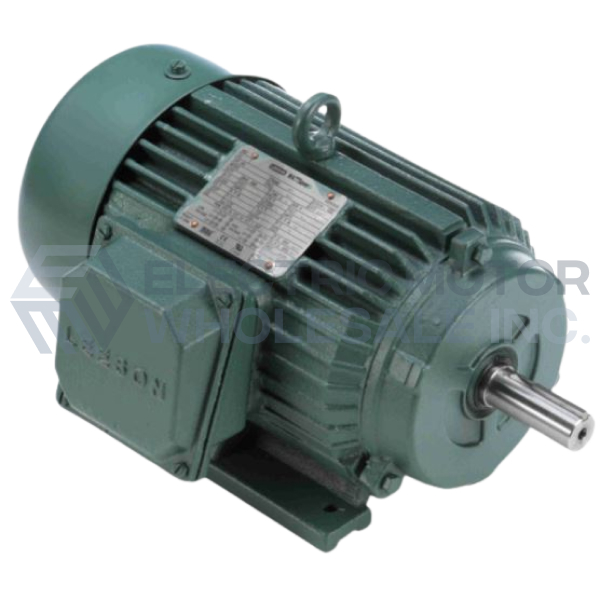

2HP LEESON 1725RPM 145T TEFC 3PH MOTOR G151703
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G151703.60
Stock # G151703
